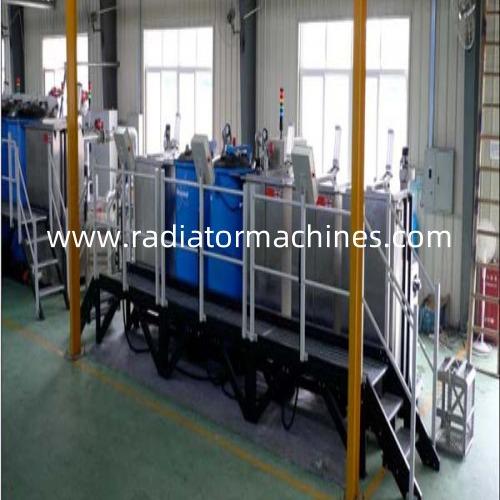

Automatic Vacuum Impregnation Pressure Machine Vacuum can be customized Working Pressure 0.5mp

1. General Introduction

The impregnation technology is a right solution to leakage problem of castings. The vacuum impregnation equipment pressurizes the sealant to enter the porosities of castings, and then cures them. The castings are sealed, and qualified to contain liquids or gas. The impregnation technology for castings are widely used at military, automobile, ships, and other relevant fields. The vacuum pregnation equipment is the most ideal equipment for solving leakage problem.The equipment is mainly used for leakage repair of castings, sealing of porous powder metal products after sintering, improvement of insulation property of electrical components, and pretreatment before galvanizing and plating.

2.Schematic diagram of machine composition

1.impregnating tank; 2. drain tank; 3. vacuum pump;

4. sealant storage tank; 5. refrigeration machine; 6. centrifugal rotation dryer;

7. wash tank I; 8. wash tank II; 9. hot water cure tank; 10. working platform;

11. rails; 12. control system .

3.Main features

1.Penetration process flow

Take the basket out of the hot water solidification tank

In the hot water curing tank, the work piece is cured for 20 minutes at a temperature of 90 ℃ Monitoring the sealing pressure of the sealing liquid supply system

2.Centrifugal drying and cleaning

The hanging basket transfers the work piece from the hot water solidification tank to the centrifugal dryer In the hot water curing tank, the work piece is cured for 15 minutes at a temperature of 90 ℃

3.Washing process

The hanging basket transfers the work piece from the centrifugal dryer to the washing tank I In washing tank I, the work piece is cleaned multiple times through pneumatic mixing Hot water solidification treatment The hanging basket transfers the work piece from washing tank I to hot water solidification tank II Thermal curing at 90 ° C for 15 minutes

4.Main Technical Parameters
