    Degreasing Rotation Type Impregnation Equipment With Customized Tank Size

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : VPI
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Sets per Year
    Delivery Time : 90 Days
    • Product Details
    • Company Profile

    Degreasing Rotation Type Impregnation Equipment With Customized Tank Size

    Degreasing Rotation Type Impregnation Equipment

    Degreasing Rotation Type Impregnation Equipment With Customized Tank Size

    1. Summary

    Vacuum impregnation equipment is widely used in the casting industry to enhance the

    properties and performance of cast parts. Here are some key applications:

    1) sealing porosity

    2) improving strength

    3) enhancing surface finish

    4) corrosion resistance.

    2. Application

    The vacuum resin porosity sealing equipment is suitable for: machining (multi-faced thread holes) oil stained

    castings and thread holes (M3 or more) machining oil stained castings.


    3. echnical Parameters

    Item60080010001200
    Working Pressure(Mpa)0.50.50.50.5
    Vacuum Degree (Pa)<100<100<200<200
    Overall Height (mm)1300150018002000
    Effective Height (mm)700100012501500
    Effective Size (mm)60080010001200

    Note: The vacuum impregnation equipment is non-standard, and we could provide the equipment according

    to buyer’s specific requirement.


    4. Equipment features

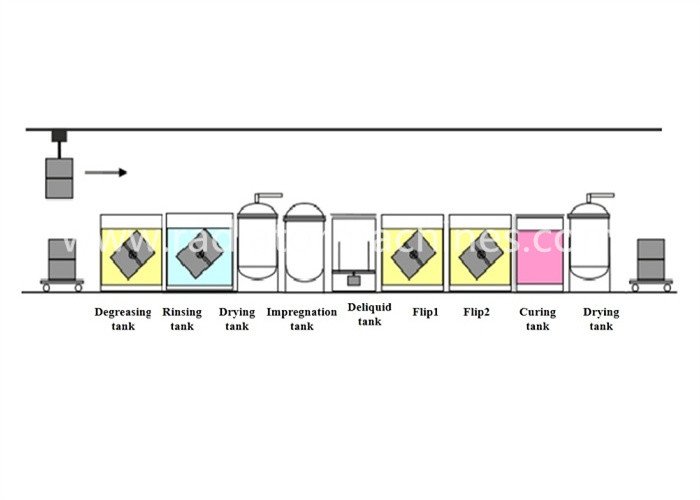

    (1)Ultrasonic degreasing and rotation spray system are adopted to ensure that the product is cleaned relatively clean.

    (2)Vacuum drying saves drying time and provides high production efficiency and efficiency.

    (3)The six-way centrifugal dewatering system can centrifuge and dry the impregnating agent in the threaded holes of the

    six faces of the product, which reduces the consumption of impregnating agent and saves costs compared with the traditional

    four-way centrifugal dewatering system, and also provides favorable conditions for the next step of cleaning.

    (4)Using the rotation spray cleaning system, it can clean the threaded holes on six sides of the product without residue.

    (5)The equipment saves a lot of labor.

    (6)PLC and automatic control are adopted to reduce labor costs

    The vacuum resin porosity sealing equipment is suitable for: machining (multi-faced thread holes) oil stained castings and

    thread holes (M3 or more) machining oil stained castings.
