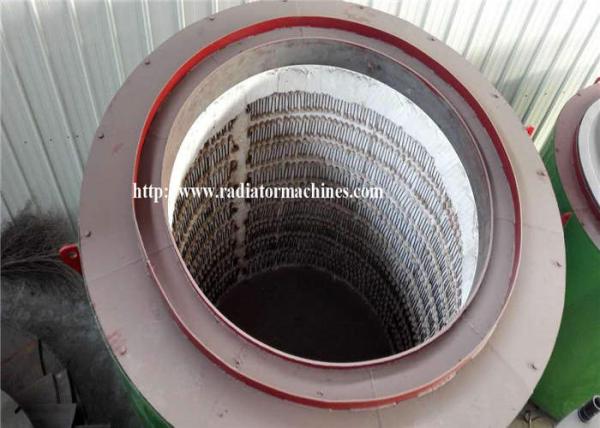

    80KW Electric Heat Treat Wire Annealing Furnace 1000x1800mm 2 Control Zones


    80KW Electric Heat Treat Wire Annealing Furnace 1000x1800mm (Dia*Depth) 2 Control Zones


    Company Introduction
    Our company is a professional supplier of heat treat/ treatment furnaces such as box type heat treatment furnace,
    bogie type heat treatment furnace, pit type heat treat furnace, carburizing heat treatment furnace, nitriding heat treat furnace, salt bath heat treatment furnace, steel wire annealing heat treat furnace, etc.


    Application of Electric Heat Treat Furnace heat treat furnace

    The pit type annealing heat treat furnace is used for annealing and spheroidizing heat treatment of metal wires,
    steel coils and alloy wires.The heat treatment furnace is suitable for heat treatment 950℃ such as high temperature
    annealing other heat treatment process.


    Technical Parameters of Electric Heat Treatment Furnace heat treat furnace

    No.NameTechnical Parameter
    1Rated heating power80KW+10%(1-100% adjustable)
    2Power supply380V,3phase,50HZ
    3Rated temperature

    Max temperature:950℃

    Normal annealing temperature: 720-850℃

    4Temperature control zone2 zones
    5Furnace cover liftingLifting by crane
    6Muffle tank sizeØ1000×1800mm (diameter × height)
    7Temperature uniformity±10℃
    8Temperature control accuracy±1.5℃
    9Empty furnace temperature rise time≤1.5h
    10Furnace surface temperature rise≤45℃
    11Empty furnace power consumption≤18KW
    12Temperature control method

    SCR, PID control, Intelligent temperature controllor, over temperautre alarm and timing function


    13Heating side4-side heating
    14Furnace lining

    refractory fiber for wall and cover;

    refractory bricks for bottom

    15Heating elements0Cr25AL5 iron chromium high
    temperature belt



    Supply Scope of Electric Heat Treat Furnace heat treatment furnace

    NO.ITEMQ'tyREMARKS
    1Furnace body1 SETIncluding furnace cover
    2Stainless steel muffle tank1 SETIncluding stainless steel muffle tank cover
    3Heating Elements1 SETElectric resistance strip
    4Temperature Control System1 SETIncluding 2pcs temperature controller
    5Control cabinet1 PC
    6SCR6 SETS
    7Compensating lead wire40 METERS
    8Thermal couple2 PCS0-1100
    9Electrical components1 SETContactor, air switch, ampere meter, voltmeter, thermal relay, switches.



    Main electrical components manufacturer

    No.ItemManufacturer
    1Temperature controllerGuolong, Shanghai
    2SCRWister, Jiangsu
    3Electrical resistance beltSHOUGANG
    4Heat preservation materialLuyang, Shandong
    5Refractory materialYixing, Jiangsu
    6Electric componentDELIXI
    7321 stainless steelTai Steel

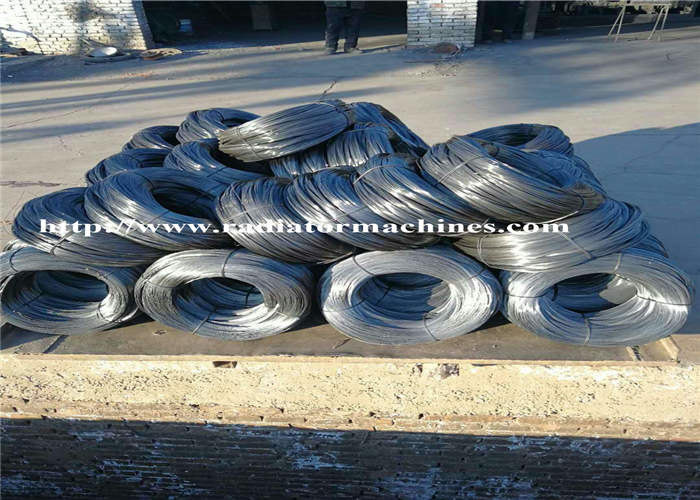

    Steel wire to be treated in the pit type annealing heat treat furnace heat treatment furnace
