    150 KW Electric Heat Treat Furnace , Aluminum Alloy Fast Quenching Furnace

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : HL-150-6
    Certification : CE CERTIFICATE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 Sets per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    150 KW Electric Heat Treat Furnace , Aluminum Alloy Fast Quenching Furnace


    150KW Electric Heat Treat Furnace , Aluminum Alloy Fast Quenching Furnace


    1. Application

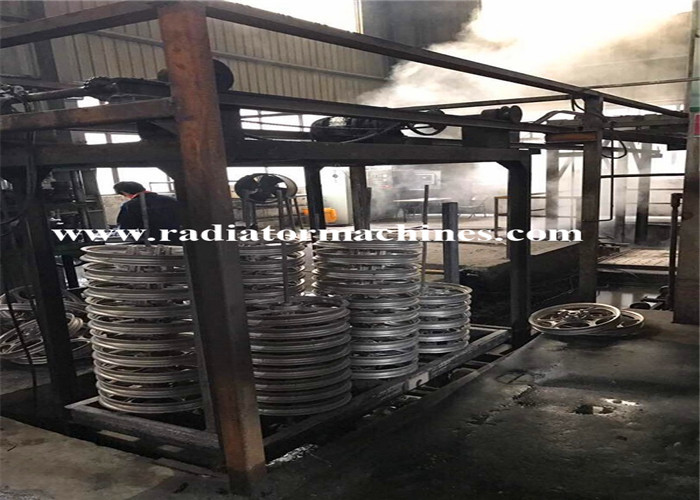

    The aluminum alloy quenching furnace is a batch furnace for fast quenching of aluminum alloy casting parts.

    The workpieces are suspended from the loading shelf. When the heating and holding stage is over, the workpieces can quickly fall into the quenching tank to get an ideal quenching quality.


    2. Main Technical Parameters

    No.ItemTechnical Parameters
    1Rated power150kW±10% adjustable
    2Power supply380V,3P,50Hz
    3Rated temperature650℃
    4Control zone2 zones
    5Loading basket effective working size1600×1600×2000mm (L×W×H)
    6Heating element connection
    7Temperature uniformity≤±5℃
    8Instrument control accuracy≤±1℃
    9Empty furnace power consumption≤18%
    10Temperature control methodPID temperature controller; TCW-32B Guolong temperature controller; paperless temperature recorder
    11quenching fall-down timeLess than 15S (from furnace door opened till parts into the quenching oil or water)
    12Empty furnace heating-up time≤1h (550℃±5℃)
    13Circulation fan power

    7.5kw 1 set

    Air volume: 11600 m3/h

    Air pressure: 1600Pa

    14Workpiece lifting methodLifted by an electric hoist
    15Furnace outer wall temperature≤35℃+ room temperature
    16Loading capacity600kg per batch, 2 batches a day
    17Furnace door sealing methodPneumatic cylinder sealing
    18Heating method4-side resistance strip heating
    3. Structural Introduction
    The furnace is mainly comprised of heating furnace body, lifting mechanism, heating elements, hot air circulation device, base stand, movable water tank and control system.

    The temperature control system adopts PID and over-zero triggering SCRs. The temperature controller used is Guolong brand TCW-32B temperature controller with a good stability. In addition the furnace is equipped with a paperless temperature recorder to recorder the temperature automatically, and a over-temperature alarm. The mechanical movements of the furnace are interlinked.


    4. Supply Scope

    No.ItemQ’tyNotes
    1Furnace body1 setIncluding 1 set of air circulation fan
    2Lifting mechanism1 set
    3Loading cart1 set
    4Loading basket2 sets
    5Temperature control system1 set
    6Movable water tank1 set
    7Thermal couple and compensation lead wire1pc
    8Technical documents1pc

    5. Company Introduction

    We are a comprehensive furnace supplier.
    We can supply the following products: box type furnace, bogie hearth furnace, hot air circulation oven,well type furnace, hood type furnace, tube type furnace, mesh belt furnace, continuous type roller type, continuous roller hearth furnace, tiltable roller furnace, push rod furnace, steel strip furnace, aluminum alloy quenching furnace, aging furnace, brazing furnace, laboratory furnace, crucible furnace, and aluminum melting and holding furnace.
    The heat treatment furnace treats the workpieces under protective atmosphere, control atmosphere, or vacuum status and with energy mediums such as electricity, natural gas, coal gas, industrial fuel oil and others.
