1500Kgs Zinc Powder Metal Melting Furnaces Rotary Type Both Gas and
Oil Fired
1. Application of zinc metal rotary melting furnace
The metal melting furnace is used to melt zinc powder working with
natural gas and diesel oil as fuel. This
double fuel system is especially appropriate for the customer with
unstable or insufficient supply of gas or oil.
2. Supply Scope of zinc metal melting furnace
| No. | Item | Unit | Notes |
| 1 | Furnace body | 1 set | 6mm steel plate |
| 2 | Lifting and rotary mechanism | 1 set | Electric |
| 3 | Inner tank | 1 piece | F08 20mm |
| 4 | Burning system with diesel oil | 1 set | RIELLO, Italy |
| 5 | Burning system with natural gas | 1 set | RIELLO, Italy |
| 5 | Electrical control cabinet | 1 set | PID control |
3. Furnace Structure
The oil fired metal melting furnace is comprised of furnace body,
seat, driving mechanism,
sealing mechanism, burning device, air piping system, temperature
control system, etc.
The zinc metal melting furnace uses oil and natural gas burner. The
high speed
burner has the advantages:
Large flame momentum: The flame is jetted out at a high speed
(larger than 100m/s).
The high speed flame can disturb the inner atmosphere strongly and
strengthens heat
convection between hot air and workpieces. And at the same time,
the temperature
uniformity is improved.
Set with burner controller to have an automatic control of burner.
4. Power Supply
The control cabinet is placed inside the control room near the
furnace. But there should be
enough distance between the zinc metal melting furnace and control
room
to ensure control room safety.The total loading power is not less
than 7.5KW.
It is mainly used for fan motor, rotary motor, and draft fan.
The space preserved for installing the zinc metal melting furnace
is not less than
6000mm*4000*4000mm (L*W*H, mm).
5.Main Technical Parameters
5.1 overall size: 3600(L)×2300(W)X1800(H) 5.2 max furnace temperature:1000℃ 5.3 temperature rising speed: ～300℃/h, adjustable; 5.4 rotary speed: 10~12m/min； 5.5 max capacity: 1500Kg 5.6 fuel type: both natural gas and diesel oil; 5.7 max consumption rate: about 30m3/h for gas and about 28kg per
hour for diesel oil; 4.6 fuel type: natural gas; heat value: Qd=8400kcal/kg 4.7 floor area: about 6000mm*4000*4000mm (L*W*H, mm). |

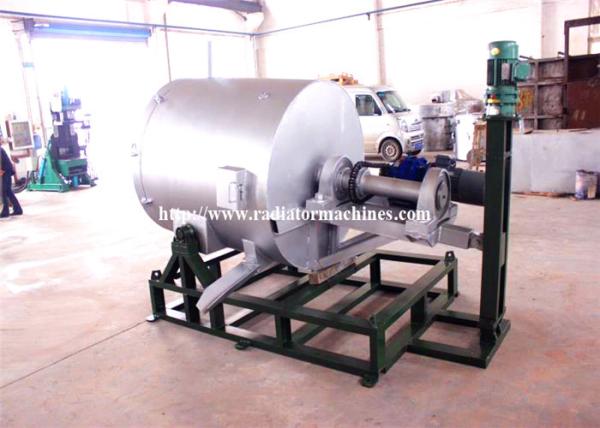

rotary metal melting furnaces in our workshop to be exported to
Saudi Arabia
