    600Kgs Metal Melting Furnaces , Metal Melting Equipment CE Certificate


    600Kgs Zinc Powder Metal Melting Furnaces Rotary Type Natural Gas Fired


    1. Application

    The zinc metal melting furnace is used to melt zinc powder working with natural gas.

    The natural gas is a clean energy which doesn’t cause pollution to the environment.


    2. Supply Scope of zinc metal melting furnace

    No.ItemUnitNotes
    1Furnace body1 set6mm steel plate
    2Lifting and rotary mechanism1 setELECTRIC
    3Inner tank1 pieceF08 20mm
    4Burning system1 setRIELLO
    5Electrical control cabinet1 setPID control

    3. Floor area and power supply

    The space preserved for installing the zinc metal melting furnace is not less than 6m(L)*4M(W)*4M(H).

    The control cabinet is placed inside the control room near the furnace. But there should be enough

    distance between the furnace and control room to ensure control room safety.

    The total loading power is not less than 5.5KW. It is mainly used for fan motor, rotary motor, and

    draft fan.


    4. Main Technical Parameters of zinc metal melting furnace

    4.1 overall size: 3310(L)×2258(W)X1564(H)

    4.2 max furnace temperature:1000℃

    4.3 temperature rising speed: ~300℃/h, adjustable;

    4.4 rotary speed: 10~12m/min

    4.5 max capacity: 600Kg

    4.6 fuel type: natural gas; heat value: Q=8600kcal/kg

    4.7 max consumption: 23m3/h

    4.8 max air consumption: 60M3/h

    4.9 max fume quantity: 53M3/h

    4.10 burner type: natural gas burner, Riello, 1 set;

    4.11 temperature zone: 1 zone;

    4.12 temperature uniformity: ±30℃ (temperature of the effective

    heating zone measured at the holding stage)

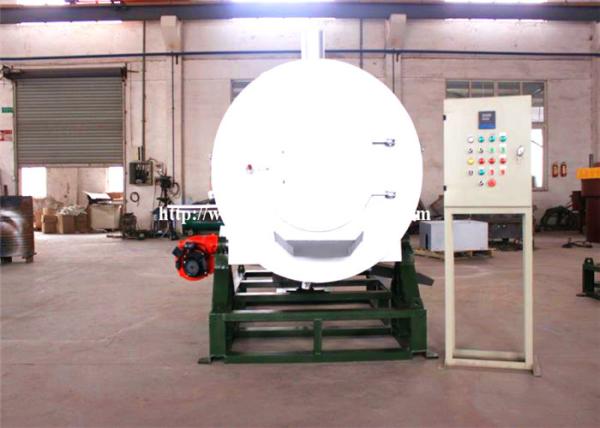

    Rotary zinc metal melting furnace in our workshop:


    600Kgs Metal Melting Furnaces , Metal Melting Equipment CE Certificate
