2 Row Radiator Core Builder Machine Hydraulic Type With 2 Years
Warranty
Technical Parameters of Radiator Core Builder
| No. | Item | Specification | Unit |
| 1 | Flat tube length | 350—800 | mm |
| 2 | Flat tube width | customer’s requirement | mm |
| 3 | Flat tube thickness | customer’s requirement | |
| 4 | Flat tube quantity | Customer’s requirement | mm |
| 5 | Fin width | customer’s requirement | mm |
| 6 | Fin height | customer’s requirement | mm |
| 7 | Fin quantity | 80 | pcs |
| 8 | Layer | 2 layers | |
| 9 | Center-to-center distance | customer’s requirement | mm |
| 10 | Header installation method | Manually put into the header mold | |
Introduction
The hydraulic type core assembly machine is used to assemble cores
based on a combined control of a mechanical
and pneumatic mechanism and the electrical control system of PLC,
and touch screen. The flat tubes, fins, side plates
and header plates are manually placed on the work table.
The core body is clamped, header assembled, and the core is
assembled and tube end expanded together with header.
The radiator core builder machine is able to assemble a various
range of models by changing and adjusting the relevant
mechanisms (chain, comb teeth, header mold, clamping block, etc).
There are both the manual and the automatic control mode available.
The manual mode is for test running purpose, and
the automatic mode is for normal use.
Features
The flat tubes are distributed through a servo tube distribution
device. And the overall comb teeth structure could ensure
the flat tube positioning accuracy.
The equipment is designed with 2-hand push buttons for safety
operation.
The equipment is easy for operation, adjustment, and tooling
replacement.
The left and right push mechanism, and clamping mechanism are
controlled by the hydraulic cylinders.
The flat tubes are distributed through a servo tube distribution
device.
The radiator core builder machine can be equipped with the header
flaring mechanism. The flaring mechanism is an optional item.
Build Up
The core assembly machine is comprised of machine body, assembly
table, flex chain mechanism, comb teeth mechanism, servo tube
distribution mechanism, pushing (alignment) and header flaring
mechanism (optional), clamping mechanism, pneumatic system,
hydraulic system, and electrical control system.
Power Supply of Radiator Core Builder Machine
| wires: 3-phase 4-wire, 50Hz |
| voltage: 3AC 380V+/-5%, 50HZ |
| rated power: 6.5KW |
| Air source input pressure: 0.6～0.8Mpa |
| Air consumption: about 0.8m3/min |
| Working pressure: 0.5Mpa |
| Equipment overall dimension and weight: (reference)
2.6*2.0*1.5m(L,W,H); 3.5T |
| Electrical control system: PLC and touch screen |

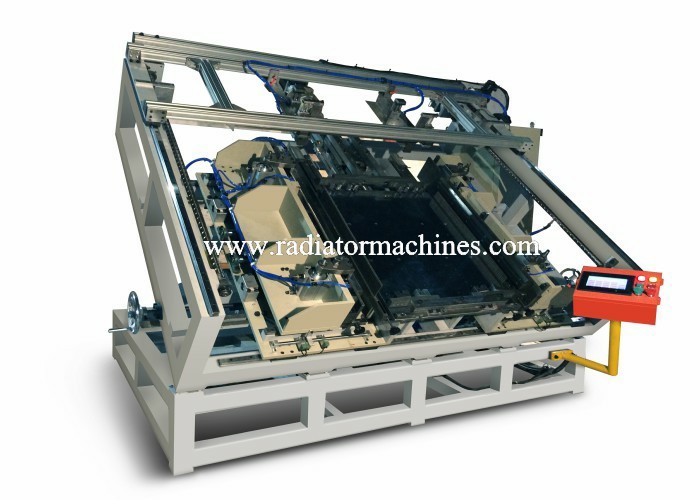

Pictures of Radiator Core Assembly Machine with Tilting Work Table
(Suitable for big size radiator)
