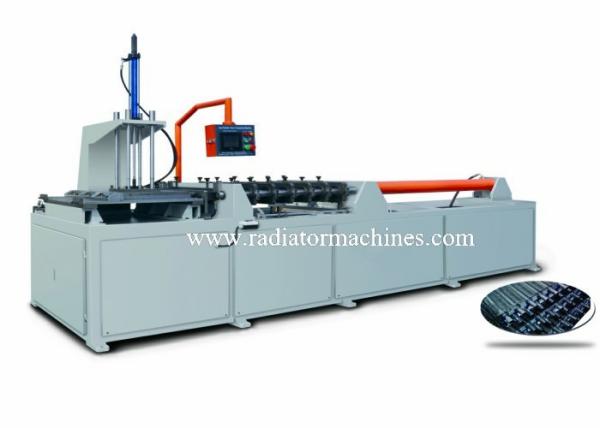

Mechanical Radiator Making Machine Expansion Aluminum Pipe Dia 8mm

    Buy cheap Mechanical Radiator Making Machine Expansion Aluminum Pipe Dia 8mm from wholesalers

    Buy cheap Mechanical Radiator Making Machine Expansion Aluminum Pipe Dia 8mm from wholesalers
    • Buy cheap Mechanical Radiator Making Machine Expansion Aluminum Pipe Dia 8mm from wholesalers

    Mechanical Radiator Making Machine Expansion Aluminum Pipe Dia 8mm

    Ask Lasest Price
    Brand Name : WONDERY
    Supply Ability : 100 Sets per Year
    Price : negotiable
    Model Number : ZGJ
    Certification : CE
    Delivery Time : 90 days after receipt of down payment
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Mechanical Radiator Making Machine Expansion Aluminum Pipe Dia 8mm


    Mechanical Radiator Making Machine Expansion Aluminum Pipe Dia 8mm


    Specifications


    Round tube expanded per time1 piece
    Radiator tube holes per row≤20 holes (decided by the customer)
    Aluminum pipe specificationφ6--φ12mm
    Expansion length300-1000mm (decided by the customer)
    Processing time10-20 seconds
    Motor power7.5kw
    Hydraulic system pressure5-16Mpa
    Overall dimension3000*1450*1700mm
    Equipment weight2.5T

    Description


    The aluminum pipe expansion radiator machine is used to expand the aluminum pipe inside to form a tight contact

    between fins and pipes with the help of the hydraulic force.It is a machine in the radiator making machine line.


    Features


    The mechanical radiator making machine employs a combined electrical and Servo structure, which is small but compact.

    The electrical control system relies on a PLC controller to control the expansion process. There are both automatic and manual

    control modes available. The hydraulic and electrical components are all imported ones.


    Applications of Radiator Making Machines

    Auto Radiator ManufacturersAluminum Pipe Expansion Machine for Mechanical Radiators in Auto Industry
    HVAC Industryhousehold air Conditions
    Other heat exchangersWhere Aluminum Pipe Expansion Machine is required

    Competitive Advantages

    This tube fin expansion machine requires a small space than the vertical aluminum pipe expander machine.

    This radiator making machine is more convenient in tooling replacement so as to expand a different product.

    This radiator machine is more easy in loading and unloading.

    This auto radiator making machine is cost effective, and a good choice for starters.


    Company Introduction

    Our company mainly supplies the mechanical radiator making machines including the following: the aluminum pipe expansion

    machine, aluminum pipe flaring machine, the high speed fin press, the air leak tester, etc.


    Working vedio of radiator making machine series (for tube-fin expansion): https://youtu.be/ne_jr8fTbtE
