    Radiator Core Assembly Machine with Tube Distribution Silo


    Radiator Core Assembly Machine with Tube Distribution Silo

    1. Main Application


    The machine is used for assembling auto radiator cores. The machine has the advantages

    of stable and reliable working prformance, easy operation, low noise, accurate positioning

    of flat tube center, and even distribution of fins. The assembled condenser core has a

    high assembling accuracy and a good apperance, which ensures a better brazing effect

    in the brazing furnace.


    a. header-to-header distance: 300-1000 mm


    b. fin width:16mm


    c. fin height: 8mm


    d. flat tube quantity: max 80 pcs (spacing at 10mm)


    e. flat tube width: decided by the customer


    f. flat tube thickness:2mm


    g. tube-tube distance: decided by the customer


    h. header width: decided by the customer


    The machine is able to produce radiators with flat tube distance at 10mm. The tube distance is

    changeable by replacing the chain flex and header fixation block.



    2. Technical Parameters


    Radiator core assembled per time: 1 piece


    Center-to-center distance: decided by the customer
    Flat tube length: 350-800mm;


    Flat tube quantity: 75 pieces or more (decided by the customer)


    Flat tube width: 16mm;


    Flat tube layer: 1-2 layers (decided by the customer)


    Assembling accuracy: diagonal line size differrence kept within ±1.5mm


    Total power: 5.5kw


    Assembling time per core: about 60 seconds


    Equipment weight: 1.8T
    Equipment overall dimension (for reference): 1700 mm×2100 mm×1700 mm


    3. Equipment Power


    a. power supply: 2 phases, 220V, 50HZ;


    b. compressed air pressure: greater than 0.4Mpa;


    c. pneumatic system working pressure: 4Mpa;


    4. Company Info

    Our company supplies several types of radiator core builder machines such as manual type, semi automatic type,


    radiator core builder with tube distribution silo, fully automatic aluminum radiator core builder line (comprised of

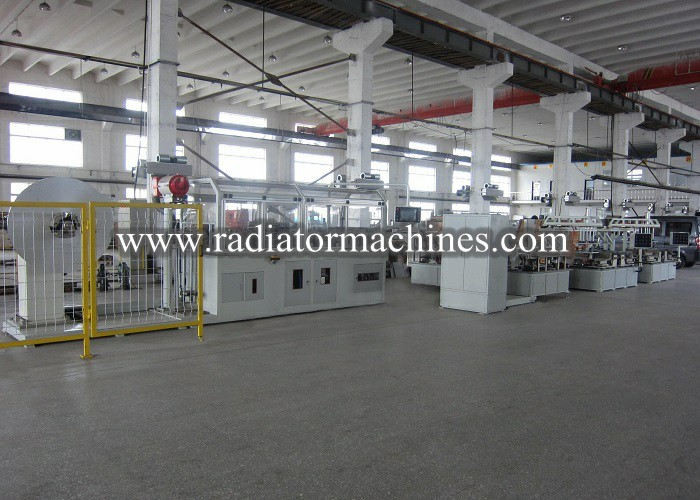

    high speed aluminum radiator fin machine, and automatic core builder. Picture of high speed core builder line:
