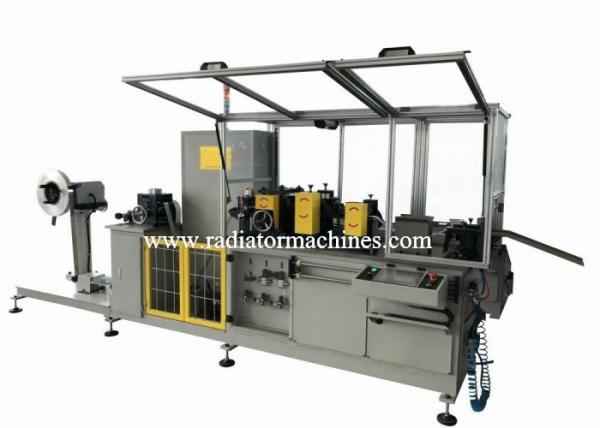

Fully Automatic Aluminum Radiator Fin Machine 100 M/min 25mm Wide
Specifications
| Power supply | 3Phase, 380V 50HZ |
| Total power | 4.5KW |
| Working speed | 0-100m/min stepless control |
| Fin production efficiency | 1000-4000 fin convolutions per minute; regulation by inverter
control; |
| Cutting frequency | max 60 times/ min |
| Protection measure | organic glass cover around the main machine body |
| Cutting accuracy | servo control; ±0 fin; cut at the crest; |
| Equipment Weight | About 1.8Ton |
| Equipment overall size | 4000X900X1800M |
| Air source requirement | air pressure >0.5Mp, Q>0.1m3/ min, dry and cool compressed
air |
| Aluminum foil size | ID: 200±20 mm (adjustable); OD: ≤1200mm |
Description of Aluminum Radiator Fin Machine
The aluminum fin machine is used to produce heat exchange wavy fins
with or without windows.
The fin rolling machine is equipped with the following devices:
decoiler, tensioning device, feeding, micro oil spray lubrication,
fin
forming, correction and cutting function. The machine is designed
with protections such as strip run-out detection, blockage
detection,
cutting fault indicator, fin forming unit overloading protection,
and fault indication light.
The electrical control system of the fin making machine adopts PLC,
inverter, AC servo control, and touch screen control. The
parameters are easily set through the touch screen.
Technical Parameters of Fin Roller of Radiator Fin Machine
Aluminum foil width: 25mm+/-0.15mm; Fin height: 5.00 +/- 0.05mm; Fin pitch : 17-19FPI; Aluminum strip thickness: 0.15mm; Aluminum foil base material: 3003; cladding at one side: 20%; Aluminum foil temper: H14; Fin tooling blade material: cobalt-containing high speed steel
forged parts; Fin tooling blade service life: ≥200 million fin convolutions
|
Components List
| Item | Specification |
| PLC and touch screen | Delta, Taiwan |
| Pneumatic components | Airtac, Taiwan or SMC, Japan |
| Low voltage electrical components | Schneider, Omron, Shanghai |
Advantages of Radiator Making Machine
1 The 100m per minute radiator fin making machine is our standard
machine model, and is equipped with PLC and HMI control system. It
is very stable in performance, and the finished product has a high
product efficiency.
2 Our factory has its own machining centers, and CNC mills. The fin
forming roller and its blades are all made by our own, which makes
our machine cost more competitive in the market.
3 The fin forming roller is changeable, and different fin models
can be produced on the same machine.
4 The minimum fin thickness for the wavy fin is 0.07mm which saves
the customer’s cost.
5 The radiator fin making machine can be equipped with our patent
lubrication system. The micro spray lubrication system can save
about 60% lubrication.
Customer accpetance of auto radiator making machine in our factory
