100 M/min Radiator Aluminum Fin Making Machine 8mm Fin Height
Advantages
1 The 100m per minute radiator aluminum fin machine is our standard
machine model, and is equipped
with PLC and HMI control system. It is very stable in performance,
and the finished product has a high
product efficiency.
2 Our factory has its own machining centers, and CNC mills. The fin
forming roller and its blades are all
made by our own, which makes our machine cost more competitive in
the market.
3 The fin forming roller is changeable, and different fin models
can be produced on the same machine.
4 The minimum fin thickness for the wavy fin is 0.07mm which saves
the customer’s cost.
5. We have also high speed fin machines with speed at 200m/min, and
300m/min. We
also have fin stacker, core builder, etc.
6. The fin machine could be equipped with microspray lubrication
device (saving lubricant cost).
Parameters of Aluminum Fin
| Fin Height | 8mm+/-0.05mm |
| Fin width | Max 100mm |
| Fin pitch | 3-4mm |
| Fin louver angle | 28 degree (-3-0) |
We would customize the fin design based on the customer's
requirement.
Parameters of Aluminum Fin Machine
| Power supply | 3Phase, 380V 50HZ |
| Total power | 4.5KW |
| Working speed | 0-100m/min stepless control |
| Fin production efficiency | 1000-4000 fin convolutions per minute; regulation by inverter
control; |
| Cutting frequency | max 60 times/ min |
| Protection measure | organic glass cover around the main machine body |
| Cutting accuracy | servo control; ±0 fin; cut at the crest; |
| Equipment Weight | About 1.8Ton |
| Equipment overall size | 4000X900X1800M |
| Air source requirement | air pressure >0.5Mp, Q>0.1m3/ min, dry and cool compressed
air |
| Aluminum foil size | ID: 200±20 mm (adjustable); OD: ≤1200mm |
Supply Scope of Aluminum Fin Machine
| Decoiler 1 set |
| megnetic powder 1 set |
| magnetic powder brake force automatic adjustment device 1 set |
| feeding motor 1 set |
| feeding device 1 set |
| feeding speed feedback adjustment mechanism 1 set |
| electrical control cabinet 1 set |
| fin entering tension adjustment mechanism 1 set |
| fin forming roller 1 set |
| fin conveyance device 1 set |
| fin collection device 1 set |
| counting and cutting device 1 set |
| operation box 1 set |
| machine body 1 set |
| main drive 1 set |
| main drive tensioning 1 set |
| pneumatic circuit board 1 set |

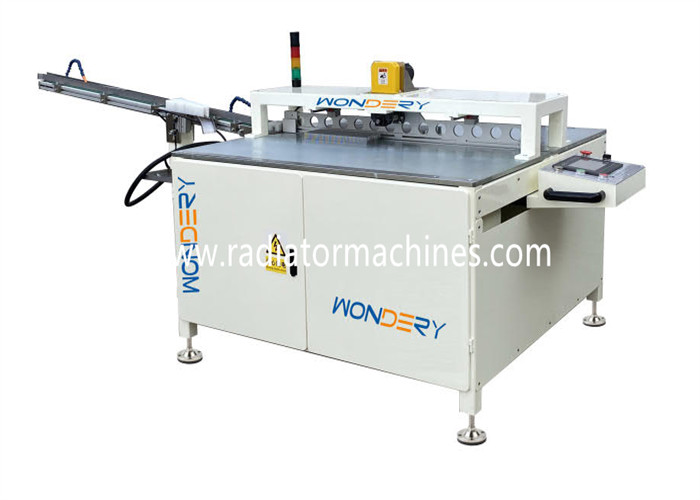

FIN STACKER FOR STCKING THE FINS
HIGH SPEED ALUMINUM FIN MACHINE FOR HEAT EXCHANGERS:
Description of Radiator Fin Machine
The equipment adopts replacable devices and one fin machine can be
used to produce different fin models.
The operator could change the fin forming roller and other
necessary parts, and make the necessary adjustments
to produce different fin models.
The aluminum fin machine is used to produce heat exchange wavy fins
at fin height 8mm (could be customized
based on customer's requirement). The electrical control system of the fin making machine relies on PLC, inverter,
AC servo control, and touch screen control. The operator could set up the parameters on the touch screen.
Related Products:
Welcome to watch youtube links for related machines:
radiator fin machine: https://youtu.be/27x4jRE0yKk
core builder machine with tube distributor:
https://youtu.be/Zk5QD6yWzUU
radiator plastic tank clinching
machine:https://youtu.be/And1JG9hCQU
aluminum brazing furnace: https://youtu.be/ENbmX6upTa4
high speed aluminum fin press:https://youtu.be/dzNBUEXNXo0
progressive fin die: https://youtu.be/RyNLcW1m5yw
hairpin tube bender machine:https://youtube.com/shorts/x14XtaY7ito
horizontal tube expander machine: https://youtu.be/gMvQg2IkLJw
vertical tube expander machine: https://youtu.be/Vfenr6yDoio
short U tube cleaning machine:
https://youtube.com/shorts/l-Pun2ccWIE
short U tube bending machine: https://youtu.be/mEGi4hzKovw
welding ring inserting machine:https://youtu.be/1VyFQbu6Q0I

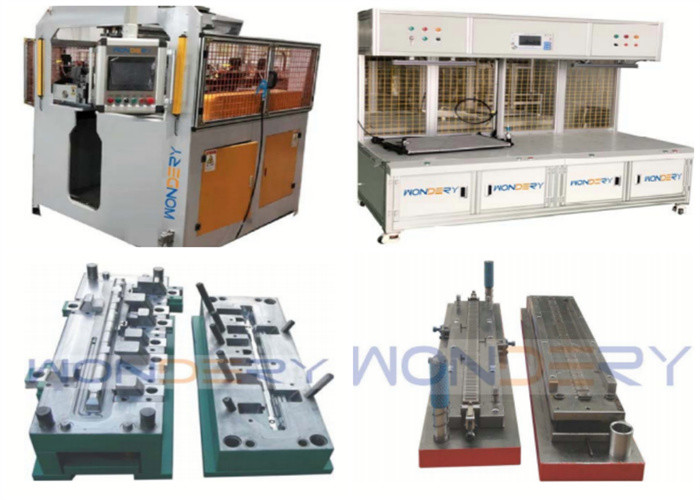

Radiator Making Machines Series:
