FGH Series Vacuum Impregnation Equipment with Drying Function
5000mm
Features and applications
The FGH series vacuum impregnation and drying equipment employes a
compound process of “hot air-vacuum environment-hot air”, which
enables the windings to be impregnated and dried in a sealed
container. The equipment has advantages of advanced design,
scientific process, compact structure, easy operation, safety and
reliability, good sealing, and reduced laboring strength. This
series is used for
vacuum impregnation treatment of windings of general motors,
electrical equipment, special motors, pump motors, magnetic motors,
transformers, and iron cores. This equipment is a newly
energy-saving equipment, which greatly improves product quality,
reduces production cost, and strengthens competitiveness.
Technical Parameters
Model | Impregnating tank diameter (mm) | Impregnating tank volume (M³) | Design pressure (Mpa) | Working pressure (MPa) | Max impregnating tank temperature (℃) | Power (kW) |
FGH -700 | 700 | 0.41 | -0.1 | -0.095 | 200 | 12 |
FGH-900 | 900 | 0.84 | -0.1 | -0.095 | 200 | 15 |
FGH-1000 | 1000 | 1.24 | -0.1 | -0.095 | 200 | 18 |
FGH-1200 | 1200 | 1.82 | -0.1 | -0.095 | 200 | 22.5 |
FGH-1400 | 1400 | 3.05 | -0.1 | -0.095 | 200 | 27 |
FGH-1600 | 1600 | 4.37 | -0.1 | -0.095 | 200 | 31.5 |
FGH-1800 | 1800 | 6.05 | -0.1 | -0.095 | 200 | 36 |
FGH-2000 | 2000 | 8.48 | -0.1 | -0.095 | 200 | 54 |
FGH-2500 | 2500 | 15.80 | -0.1 | -0.095 | 200 | 84 |
FGH-2800 | 2800 | 21.17 | -0.1 | -0.095 | 200 | 108 |
FGH-3000 | 3000 | 24.59 | -0.1 | -0.095 | 200 | 108 |
FGH-5000 | 5000 | 48.56 | -0.1 | -0.095 | 200 | 184 |
Company Info
Our company is specialized in designing and manufacturing
industrial equipment, and providing excellent pre-sales and
post-sales
service of various industrial machinery. The company mainly
supplies the following products: VPI series vacuum pressure
impregnation equipment, FGH vacuum impregnation drying machine,
water-curtain type paint spraying chamber, assembly conveyance
line,
energy-saving drying ovens, baking ovens, and others.
Comparision between VPI vacuum pressure impregnation equipment and
FGH impregnation equipment:
1) The former VPI series carries out the impregnation under the
positive compressed air pressure 0.6Mpa or even high while the FGH
series just works with a vacuum environment only.
2) The VPI impregnation tank is able to work with a max tank inside
temperature of 80 degree celcius while the FGH series allows a max
temprature of 200 degree celcius.
3) The VPI impregnation tank is made of Q345R material due to the
fact that it is a pressure vessel while FGH impregnation tank is
made of Q235B material.
4) The VPI series is suitable for treating high voltage motors,
transformer cores, anti explosion motors, mining motors while the
FGH series for low voltage motors.

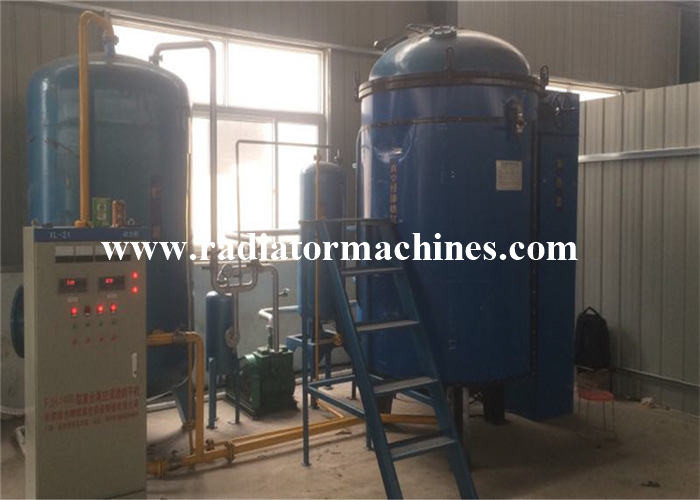

Picture of Vacuum Impregnation Equipment:
