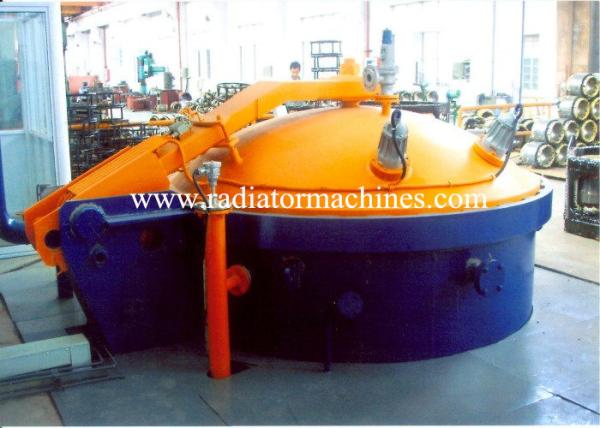

VPI Vacuum Pressure Impregnation Equipment / Plant For Motors 1600
* 1600 mm
Features and applications
The vacuum pressure impregnation equipment employs a compound
process of “hot air-vacuum environment-hot air”, which
enables the windings to be impregnated and dried in a sealed
container. The vacuum pressure impregnation system has
advantages of advanced design, scientific process, compact
structure, easy operation, safety and reliability, good sealing,
and reduced laboring strength. This series is used for vacuum
pressure impregnation treatment of windings of general motors,
electrical equipment, special motors, pump motors, magnetic motors,
transformers, and iron cores. This equipment is a newly
energy-saving equipment, which greatly improves product quality,
reduces production cost, and strengthens competitiveness.
Model Table
| Model | Diameter of Impregnation Tank | Nominal Volume of Impregnating Tank | Vacuum Degree | Working Pressure | Floor Area |
| mm | M³ | Pa | Mpa | W×L |
| VPI-900 | 900 | 0.84 | 40-5000 | 0.1-1.8 | 2100×3400mm |
| VPI-1000 | 1000 | 1.24 | 40-5000 | 0.1-1.8 | 2100×3400mm |
| VPI-1200 | 1200 | 1.82 | 40-5000 | 0.1-1.8 | 2200×4500mm |
| VPI-1400 | 1400 | 3.05 | 40-5000 | 0.1-1.8 | 2400×4800mm |
| VPI-1600 | 1600 | 4.37 | 40-5000 | 0.1-1.8 | 3200×5400mm |
| VPI-1800 | 1800 | 6.05 | 40-5000 | 0.1-1.8 | 3800×6900mm |
| VPI-2000 | 2000 | 8.48 | 40-5000 | 0.1-1.8 | 4500×7800mm |
| VPI-2500 | 2500 | 15.80 | 40-5000 | 0.1-1.8 | 4900×8500mm |
| VPI-2800 | 2800 | 21.17 | 40-5000 | 0.1-1.8 | 5800×9400mm |
| VPI-3000 | 3000 | 24.59 | 40-5000 | 0.1-1.8 | 660011400mm |
| VPI-5000 | 5000 | 48.56 | 40-5000 | 0.1-1.8 | 11800×16800mm |
Parameters VPI 1600 *1600mm
Vacuum Pressure Impregnation Equipment Tank
a) pressurizing and impregnating tank, specification: Φ1600×1600mm,
1 piece; head: 16MnR; tank body material: Q345-R; flange:16MnR
forged parts; b) working pressure: 0.6MPA; c) working vacuum degree: -0.096MPA; d) weight bearing capacity: 30 ton e) structure: vertical |
Features
a) The vacuum pressure impregnation equipment tank cover is opened
and closed with the help of a hydraulic mechanism. The signal is
feedback through non-contact proximity switch. The tank cover
opening angle follows the rule that the top point of the opened
cover passes over the inner wall of the impregnating tank.
b) The impregnating tank is equipped with a level transmitter.
c) The impregnating tank is equipped with an over-pressure alarm,
and a pressure safety device.
d) The impregnating tank is designed with one anti-explosion
peephole light and one observation window.
e) The vacuum pressure impregnation equipment tank is sealed by a
silicon rubber ring.
f) When the impregnating tank cover is opened, the tank has safety
interlock mechanism.
h) The resin is supplied into the impregnating tank through the
tank bottom.
i) The impregnation tank is equipped with a camera so as to check
the inside working performance.
Youtube link of equipment:
https://youtu.be/EWkfmRQbxHE
