    Pit Type Electric Heat Treat Furnace , Steel Wire Annealing Furnace 950 Degree

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : RJ2-300-9
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200SETS PER YEAR
    Delivery Time : 60-75 DAYS
    • Product Details
    • Company Profile

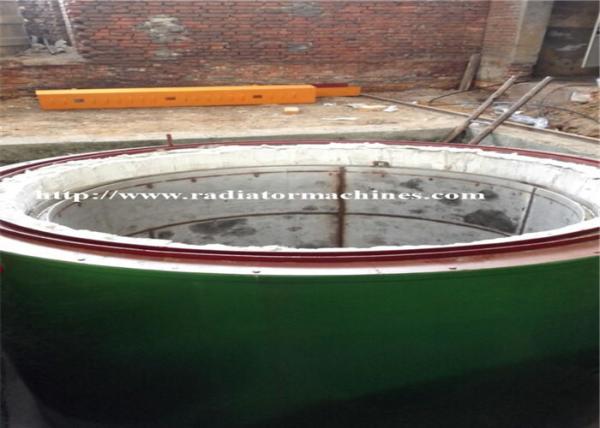

    Pit Type Electric Heat Treat Furnace , Steel Wire Annealing Furnace 950 Degree

    Pit Type Electric Heat Treat Furnace , Steel Wire Annealing Furnace 950 Degree


    Application of Electric Heat Treat Furnace heat treat furnace


    The pit type annealing heat treat furnace is used for annealing and spheroidizing heat treatment of metal wires,

    steel coils and alloy wires.The heat treatment furnace is suitable for heat treatment 950℃ such as high temperature

    annealing other heat treatment process.


    Technical Parameters of Electric Heat Treatment Furnace heat treat furnace

    1 ) Rated heating power: 300kW+5%(1-100% adjustable)

    2 ) Rated temperature: 950℃

    3 ) Normal temperature: 750℃

    4 ) Power supply 380V,3 phase,50HZ

    5 ) Heating zone: 3-zone(upper, middle, lower)

    6 ) Hearth effective working sizse: Ø2500×2500mm(diameter × height)

    7) Temperature uniformity: ≤±10℃

    8) Temperature control accuracy: ≤±2℃

    9) Empty furnace power consumption: ≤18%

    10 ) Furnace body and cover opening method: by crane

    11 ) Heating method: four sides of furnace hearth+ the furnace bottom

    12 ) Furnace bottom designed capacity:≥15t

    13 ) Temperature rise of outside wall: ≤45℃+ room temperature

    14 ) Loading method: the workpiece loaded into the hearth by crane

    15 ) Temperature control method: SCR , PID control, Intelligent temperature controllor, over temperautre alarm and timing function

    16 ) power controller : intelligent temperature controller with PID regulation

    17 ) Furnace lining: refractory fiber for wall and cover; heavy refractory bricks for bottom;

    18 ) Furnace bottom plate: CrMnN,thickness 30mm;

    19 ) Loading capacity: 5 ton;


    Supply Scope of Electric Heat Treat Furnace heat treatment furnace

    NO.ITEMQ'tyREMARKS
    1Furnace body1 SETIncluding bottom hearth plate and furnace cover
    2321 stainless steel muffle tank1 SETIncluding stainless steel muffle tank cover
    3Heating Elements1 SETElectric resistance strip
    4Temperature Control System1 SETIncluding 3pcs temperature controller
    5Control cabinet1 PC1800X700X600mm
    6SCR9 SETS
    7Compensating lead wire100 METERS
    8Thermal couple3 PCSKtype 0-1100
    9Electrical components1 SETContactor, air switch, ampere meter, voltmeter, thermal relay, switches.

    Company Info: our company is a professional supplier of heat treat/ treatment furnaces such as

    box type heat treatment furnace, bogie type heat treatment furnace, pit type heat treat furnace,

    carburizing heat treatment furnace, nitriding heat treat furnace, salt bath heat treatment furnace,

    steel wire annealing heat treat furnace, etc.


    Steel wire to be treated in the pit type annealing heat treat furnace heat treatment furnace
