Epoxy Resin Vacuum Pressure Impregnation Equipment VPI 1500 *
2000mm
Introduction
High vacuum pressure impregnation equipment / system is the key
equipment for insulation treatment of high voltage
motors, special anti-explosion motors, and transformers. The
equipment enhances the mechanical strength, insulation,
anti-moisture and anti-mold performance of the windings.
Installation type: vertical.
Supply Scope
1. Vacuum pressure impregnation equipment tank, 1 set; 2. Resin storage tank, 1 set; 3. Vacuum system, 1 set; 4. Hydraulic system, 1 set; 5. Pneumatic system, 1 set; 6. Pressurizing system, 1 set; 7. Resin cooling system, 1 set; 8. Resin heating system, 1 set; 9. Resin supply and return system, 1 set; 10. Electrical control system, 1 set; 11. Exhaust system, 1 set; |
Technical Documents Provided
Documents for vacuum pressure impregnation system: Qualification
certificate, technical features paper, main pressurized components
material list, welding line radiographic examination report, spare
parts nondestructive examination report, pressure vessel appearance
and physical dimension test report, welding test plate mechanics
and curving performance examination report, pressure test
inspection report, inspection certificate of pressure vessel
product safety performance.
other documents: bought-in components documents and electrical
components list; manual, foundation drawings, electrical diagram,
process flow charts, etc.
Technical Parameters
| Vacuum Pressure Impregnation Equipment Tank 1 Set |
a) pressurizing and impregnating tank, specification: Φ1500×2000mm,
1 piece; head: 16MnR; tank body material: Q345-R; flange: 16MnR
forged parts; b) working pressure: 0.6MPA; c) working vacuum degree: 100-200Pa; d) Sealing ring of the impregnating tank: gas-filling type sealing
ring. |
| Resin Storage Tank 1 Set |
a) insulation resin storage tank, specification: Φ1500×2000mm, 1
piece; material: Q235-B; b) The resin storage tank is designed with one peephole light and
one observation window. c) working vacuum: 1000-2000Pa; d) This system has heating and cooling function. e) mixer: 25-36r/min, 3 KW. f) heating cooling jacket layer: 100mm heating/cooling jacket
layer. |
Youtube Link of Working Vedio:
https://youtu.be/EWkfmRQbxHE

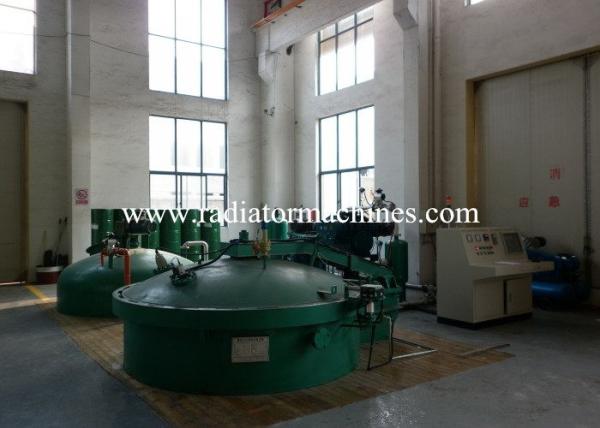

Picutre of Vacuum Pressure Impregnation Equipment
