    Vacuum Pressure Impregnation Equipment for Motors , Vacuum Impregnation Process (VPI)

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : VPI 2500*3000
    Supply Ability : 100 Set/Sets per Year
    Price : Negotiable
    Certification : CE
    Payment Terms : L/C, T/T
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

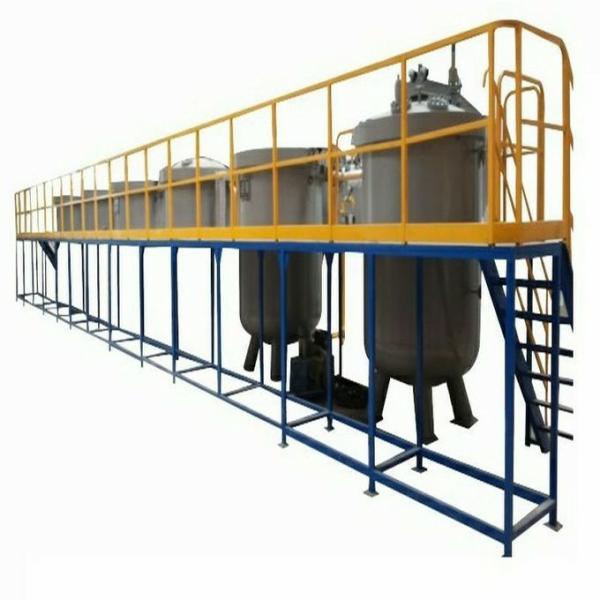

    Vacuum Pressure Impregnation Equipment for Motors , Vacuum Impregnation Process (VPI)

    Vacuum Pressure Impregnation Equipment for Motors , Vacuum Impregnation Process (VPI)

    1. Features

    The vacuum pressure impregnation process (VPI) employs a process of vacuum and pressurizing.

    The resin storage tank shell is set with a chilling and heating coil filled with glycol water solution.

    The temperature is automatically controlled. Also the resin storage tank is set with a mixing device.

    And the top of the storage tank is set with an anti-explosion lamp and an observation window. And the

    outside of the tank is heat preserved by high temperature rock wool, and then further covered by

    a stainless steel shell.


    2. Supply Scope


    Vacuum pressure impregnation process tank, 1 set (vertical type);
    resin storage tank, 1 set (vertical type);
    vacuum system, 1 set;
    vacuum buffer system, 1 set;
    magnetic filtration system, 1 set;
    resin supply and return system, 1 set;
    hydraulic system, 1 set;
    pressurizing system, 1 set;
    pneumatic system, 1 set;
    chilling and heating system, 1 set;
    ventilation and discharge system, 1 set;
    control and measurement system, 1 set;

    3. Main Technical Parameters

    Vacuum pressure impregnation equipment tank size: Φ2500×h3000mm;

    storage tank size (vertical): Φ2500×h3000mm;

    storage tank design temperature: 0~80℃

    storage tank working temperature: 5~50℃

    impregnation tank extreme vacuum (cold status and empty load): 10Pa

    leak rate: ≤0.133pa.m3/s

    vacuum impregnation tank working vacuum degree: ≤70pa (or resin saturation steam pressure)

    working pressure: 0-0.60Mpa.



    4. Company Information


    Our company is specialized in designing and manufacturing industrial equipment, and providing excellent

    pre-sales and post-sales service of various industrial machinery. The company mainly supplies the following

    products: VPI series vacuum pressure impregnation equipment, FGH vacuum impregnation drying machine,

    vacuum pressure impregnation equipment, water-curtain type paint spraying chamber, assembly conveyance

    line, energy-saving drying ovens, baking ovens, and others.


    5. Applications


    The vacuum impregnation system are widely used for impregnation treatment of windings of motors,

    electrical equipment, high voltage motors, traction motors, special motors, pump motors, magnetic

    motors, and transformers. The equipment is a newly energy-saving equipment, which greatly improves

    product quality, reduces production cost, and strengthens competitiveness.


    Youtube link of Vacuum Pressure Impregnation Equipment

    https://youtu.be/EWkfmRQbxHE


    Vaccum Pressure Impregnation System


    Vacuum Pressure Impregnation Equipment for Motors , Vacuum Impregnation Process (VPI)


    6. Vacuum impregnation waste gas treatment equipment

    The activated carbon adsorption purification designs the environmental protection treatment system according to

    the waste gas temperature, waste gas concentration, emission, waste gas type and national emission standards

    provided by the user. Due to the high concentration and temperature of waste gas, and considering the low operation

    cost and the adsorption of organic waste gas by activated carbon, the granular activated carbon adsorption recovery

    device is generally selected as the main equipment. The working principle of activated carbon bed is divided into

    two parts. One is adsorption, The second is desorption regeneration. After the waste gas is cooled by the gas

    cooler, the gas enters the activated carbon box. After being adsorbed by the activated carbon in the box, the

    harmful components are removed, and the purified gas meeting the emission standard is discharged to the outside

    through the fan. The activated carbon adsorbs a certain solvent for a period of time (the length of use depends on the

    content of the gas and the length of production time). It should be regenerated. During regeneration, 0.07 MPa steam

    is sprayed into the adsorption box, Evaporate all kinds of solvents adsorbed in the activated carbon, condense them

    into liquid through the condenser, and enter the separation cylinder to separate and recover the organic solvent. The

    residual liquid enters the aeration cylinder. If the temperature of the waste gas is high, it will affect the adsorption

    effect of the activated carbon. Therefore, before adsorption, conduct the waste gas cooling device to reduce the

    temperature to about 40 ℃, and the cooled waste gas finally goes to the adsorption tank. The cooled gas enters

    the activated carbon adsorption bed with an air volume of 3000m3, The flow velocity in the activated carbon layer

    is less than 0.70 M / s, which can ensure the adsorption effect of activated carbon.


    Activated carbon treatment process flow:

    Vacuum Pressure Impregnation Equipment for Motors , Vacuum Impregnation Process (VPI)
