High Speed Radiator Production Line For Making Heat Exchange Wavy Fins

High Speed Radiator Production Line For Making Heat Exchange Wavy Fins Introduction

The high speed radiator production line includes the 280m/min fin machine section, the tube-fin arrangement table,

and core builder table section.

Introduction to fin machine section

The high speed fin radiator production is used to produce heat exchange wavy fins with or without windows.

The fin radiator production line machine is equipped with the following devices: decoiler, tensioning device,

feeding, interval oil lubrication, fin forming, correction and cutting function, strip run-out detection, blockage

detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.

The fin radiator making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters

are easily set through the touch screen. The machine is specially equipped with one micro spray lubrication system

which could reduce lubricant consumption greatly.

Technical Parameters

Equipment Name	Specification		Q’ty
Fully-automatic High Speed Fin Making Machine Specification: GS200; Max feeding speed: 280m/min; coil inner diameter: 300mm; double coil tray; Fin cutting frequency: max 80 times/min; DS800 micro-spray precision lubrication system (patent product); Control system: Delta, Taiwan Worker: 1 person;			1 Set
Fin forming unit technical specification: Fin width W≥20; Fin height H: according to the drawing; Fin pitch h: according to the drawing; Aluminum strip thickness β:0.08mm; Opening width γ: according to the drawing; Opening angle α: according to the drawing; opening length L: according to the drawing; Fin R angle: according to the drawing; Fin shape: U shape; Aluminum strip material: AA4343/AA3003/AA4343 Fin tooling blade material: cobalt-containing high speed steel forged parts; Fin tooling blade service life: ≥150 million fin convolutions for compound aluminum strip; ≥250 million fin convolutions for pure aluminum strip;

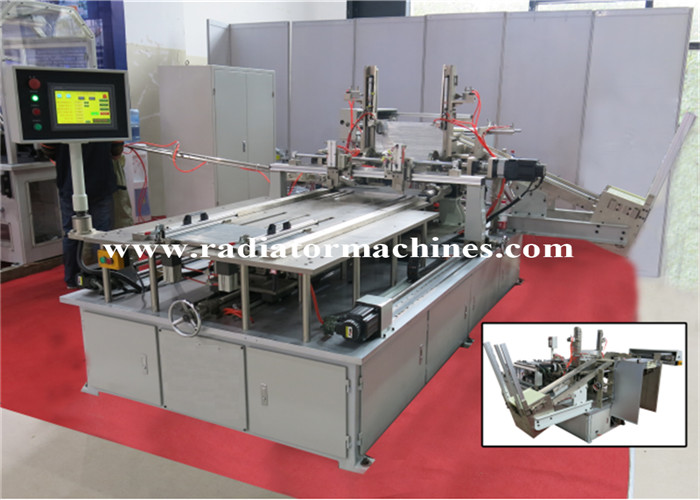

Condenser core fin and flat tube distribution machine		Output＞60 cores/hour (varying with condenser core size, specification and worker’s operation); Operator: 1 person;	1 Set
Radiator core assembly table		Output per table＞50 cores/hour (varying with condenser core size, specification and worker’s operation); Operator: 1 person/table;	2 Sets

Company Info

Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories.

We can supply the complete raditor making machine line to the customer based on their specific needs.

Commissioning service is also provided. We have our export sales team which is highly efficient,

professional and cooperative.

Auto Radiator Making Machines

Brazing radiator making machines: fin machine, radiator core
builder machine, plastic tank clinching machine, radiator leak testing machine/leak detector, header and side

plate mold, continuous brazing furnace; mechanical radiator machines: high speed fin punching machine, fin die,

tube-to-fin expansion machine, tube-to-header expansion machine, plastic tank clinching machine, etc;

copper radiator making machine line:fully-automatic tube making machine, copper fin making machine,

gas-fired core body brazing furnace, header tinning furnace, manual core builder machine.
