    Aluminum Radiator Plastic Tank Crimping Machine Servo 4 Side Integrated Crimping

    Ask Lasest Price
    Brand Name : WONDERY
    Supply Ability : 100 Set/Sets per Year
    Price : Negotiable
    Model Number : SSKY-800*800
    Certification : CE
    • Product Details
    • Company Profile

    Aluminum Radiator Plastic Tank Crimping Machine Servo 4 Side Integrated Crimping

    Aluminum Radiator Plastic Tank Crimping Machine Servo 4 Side Integrated Crimping

    Product Application

    The aluminum radiator plastic tank crimping clinching machine is used for crimping the teeth of the header plates and locking the plastic tank tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. This servo type plastic tank crimping machine is used to handle products of various specifications. The radiator clinching machine is divided into the long-side header crimping mechanism and end crimping mechanism. Both the long and short-side header are crimped by one machine cycle. The worker just needs to load and unload the core.


    SPECIFICATIONS FOR Aluminum Radiator Plastic Tank Crimping Machine

    Core Size

    Max Header Lengthmm100-800mm
    Max header to header distancemm350-950mm
    Max header widthmm48mm
    Technical ParametersStep Distancemmadjustable
    Max header teeth quantitypc100
    VoltageVolt, frequency, phasecustomized
    Overall DimensionL*W*Hmm2200*1800*1800mm
    WeightTon2.8

    Company Introduction

    Our company mainly supplies the radiator making machines such as aluminum fin machine, core builder, radiator plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc.

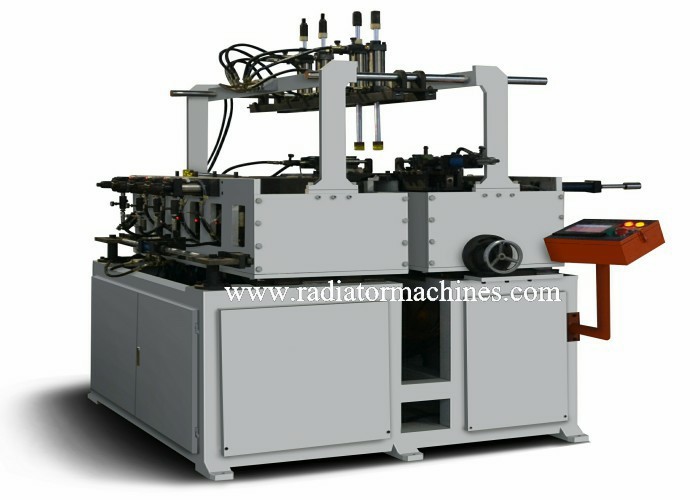

    Picture of Plastic Tank Crimping Machine with Hydraulic Force

    Aluminum Radiator Plastic Tank Crimping Machine Servo 4 Side Integrated Crimping
