Oil Fired Rotary Metal Melting Furnace For Lead Smelting Plant 1000kg

    Buy cheap Oil Fired Rotary Metal Melting Furnace For Lead Smelting Plant 1000kg from wholesalers

    Buy cheap Oil Fired Rotary Metal Melting Furnace For Lead Smelting Plant 1000kg from wholesalers
    • Buy cheap Oil Fired Rotary Metal Melting Furnace For Lead Smelting Plant 1000kg from wholesalers
    • Buy cheap Oil Fired Rotary Metal Melting Furnace For Lead Smelting Plant 1000kg from wholesalers

    Oil Fired Rotary Metal Melting Furnace For Lead Smelting Plant 1000kg

    Ask Lasest Price
    Brand Name : WONDERY
    Certification : CE
    Supply Ability : 10 Sets per Month
    Price : Negotiable
    Model Number : ZL-1000
    Delivery Time : 45 Days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Oil Fired Rotary Metal Melting Furnace For Lead Smelting Plant 1000kg

    Oil Fired Rotary Metal Melting Furnace For Lead Smelting Plant 1000kg

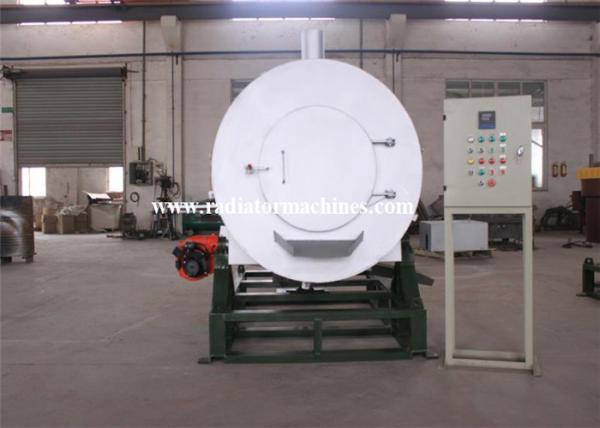

    Oil Fired Rotary Metal melting Furnace For Lead Smelting Plant is used to melt the Lead Metal.

    The furnace body is of an oval shape. The two sides of the hearth are built with once-forming refractory material

    with a high strength. The furnace lining is comprised of refractory layer, heat preservation layer, and heat

    insulation layer. The hearth is built with high strength once-forming casting material. The hearth is equipped with

    one fire blocking ring which could prolong the flame stay period, increase melting speed and reduce energy

    consumption. The furnace has the features of high performance, air tightness, high strength, and long service life.

    The heat preservation layer and insulation layer are both of ceramic fiber material.

    The metal melting furnace has a fast temperature rising speed, a good heat preservation, and a low energy

    consumption.
    The burning system is comprised of the fan, the solenoid valve, the igniter, and the flame monitor. Connect

    the burner with power, and the burner will work.


    SPECIFICATIONS FOR Oil Fired Rotary Metal Melting Furnace For Lead Smelting Plant 1000kg


    Burning System

    Burner type

    Oil burner

    1 set

    Oil Consumption

    kg/ton lead

    20


    Temperature control system

    Temperature zone

    zone

    1

    Max furnace temperature

    °C

    1000

    Temperature rising speed

    °C/hour

    approx 300

    Temperature uniformity

    °C

    ±10


    Furnace body

    Melting Pool Capacity

    kgs

    1000

    Rotary speed

    circle/min

    1



    Packaging

    Size

    10m³

    Weight

    3T

    Packaging Details

    The normal package for the rotary metal melting furnace is plywood. Fumigating is not needed.If

    container is too tigher,we will use pe film for packing or pack it according to customers special request.


    Related products

    Aluminum metal melting furnace supplied by our company, working with ingot casting machine.
