    Oil Fired Metal Melting Furnace Copper 1000 kgs Tilting Structure

    Ask Lasest Price
    Brand Name : WONDERY
    Certification : CE
    Supply Ability : 10 Set/Sets per Month
    Price : Negotiable
    Model Number : WR-RCUY-1000
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Oil Fired Metal Melting Furnace Copper 1000 kgs Tilting Structure

    Oil Fired Metal Melting Furnace Copper 1000 kgs Tilting Structure

    Product Description

    The copper metal melting furnace is used to melt copper scrap at a rated temperature of 1250°C.


    Highlights:

    1) Casting Material:

    Brand: Allied Mineral Porduct Inc or famous domestic brand

    Original: CHINA.

    The casting material has a long service life. It has a life of more than 5 years depending on user's operation conditions.

    2) Emergency outlet hole

    The lower part of the metal melting furnace body is designed with an emergency outlet hole in case the crucible breaks.

    3) Graphite crucible

    The graphite crucible is of quality brand Vesuvius or Morgan.

    The capacity of crucible can be customized.

    4) Electrical control system

    The electrical control system is of quality brands such as CHINT, Omron, Delixi, etc.


    Model Table

    The customer could also require the metal melting furnace to be equipped with pipe burning system or riello burner system.


    Model

    Crucible SpecificationMaximum Melting Rate (Kg/h)
    Inner Diameter (mm)

    Height

    (mm)

    Capacity

    (kg)

    WR-RCUY-300455500300200
    WR-RCUY-500455600500350
    WR-RCUY-800615700800600
    WR-RCUY-10006208001000700

    Parameters of 1000 kgs copper metal melting furnace

    Fuel

    DieselKcal/kg9600
    Consumptionkg/ton copper65

    Main Performance Parameters

    Crucible capacitykg

    1000

    (can be customized)

    Melting ratekg/hour

    500

    (at continous working status)

    Working temperature°C1250
    Crucible brandVesuvius or Morgan
    Hydraulic systemComponents brandDomestic brand

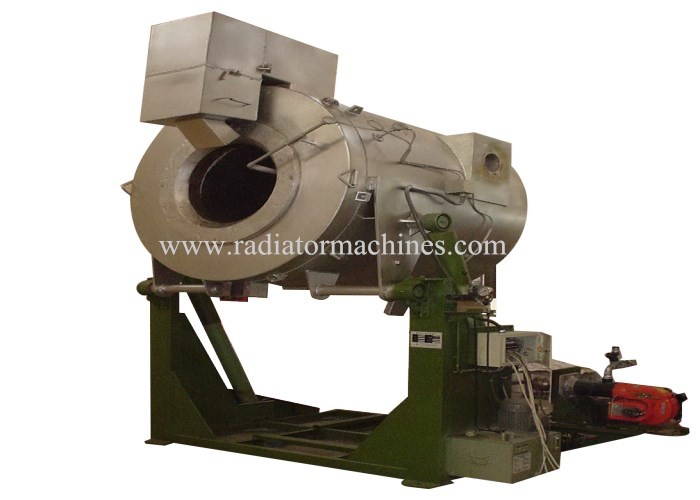

    Picture of Tilting Copper Metal Melting Furnace
    Oil Fired Metal Melting Furnace Copper 1000 kgs Tilting Structure
