    Natural Gas Fired Metal Melting Furnace Copper With Vesuvius Crucible

    Ask Lasest Price
    Brand Name : WONDERY
    Certification : ISO CERTIFICATE
    Supply Ability : 10 Sets per Month
    Price : Negotiable
    Model Number : WR-RCUQ
    Delivery Time : 30 Days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Natural Gas Fired Metal Melting Furnace Copper With Vesuvius Crucible

    Natural Gas Fired Metal Melting Furnace Copper With Vesuvius Crucible


    Product Description


    Natural Gas Fired metal Melting Furnaces for copper is used to melt copper scraps at a temperature of 1250degree celcius.


    Natural Gas Fired Metal Melting Furnaces Copper

    Fuel

    Natural gas

    kcal/m38400
    Natural gas consumptionm3/ton Copper80-90
    Gas burner brandRiello (or decided by customer)

    Main performance parameters

    Melting cyclehour2
    Working temperature1250
    Crucible brandVesuvius
    Hydraulic systemcomponents branddomestic brand

    Main Features

    1) The copper metal melting furnace is equipped with high quality Riello imported brand burner.

    2) The crucible melting furnace is scientifically designed with a chimney.

    3) The melting furnace body is built with once-forming casting material which has a life of more than 3 years.

    4) The copper melting furnace is designed with an emergency outlet hole in case that the crucible breaks.

    5) The copper metal melting furnace is equipped with two thermal couples, 1 for measuring the hearth

    temperature and1 for measuring the liquid temperature.


    MODEL TABLE of Melting Furnace


    Type Number

    Crucible Specification

    Maximum Melting Rate

    (kg/h)

    Inner diameter

    (mm)

    Height

    (mm)

    Capacity

    (kg)

    WR-RCUQ-300455500300200
    WR-RCUQ-500455600500350
    WR-RCUQ-800615700800600
    WR-RCUQ-10006208001000700

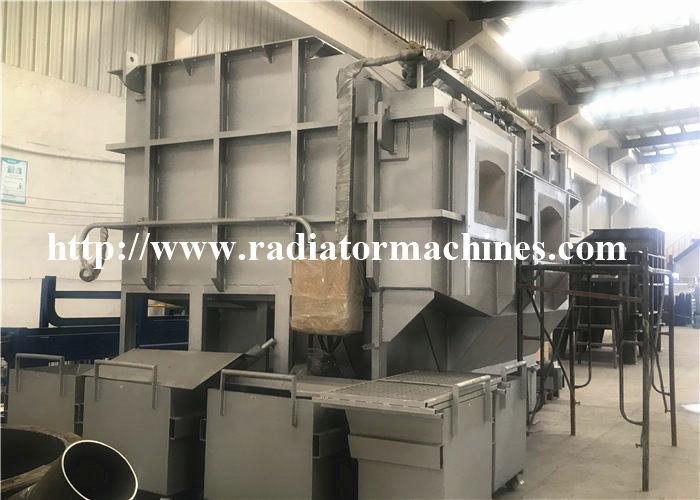

    Picture of Continuous Aluminum Metal Melting Furnaces with Charging Device for max 3000kg per hour productivity Natural Gas Fired Metal Melting Furnace Copper With Vesuvius Crucible
