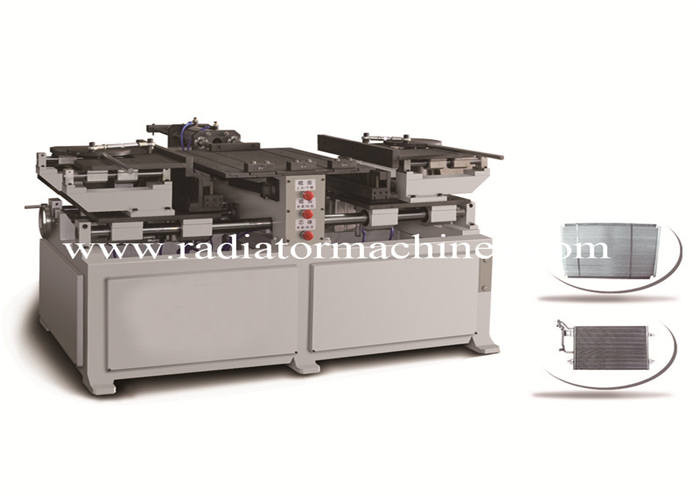

Condenser Header Pipe Punching Machine , Automatic Punching Machine
For D Tubes
1. Main Application
This header pipe punching machine is specially used for making the
aluminum pipes for parallel
flow condenser by punching holes in the aluminum pipes. The header
pipe punching machine is a necessary
equipment for the parallel flow condenser production line. The
header pipe punching machine is
used for producing round collecting pipes or abnormal-shaped
collecting pipes of the parallel flow condensers.
2. Working Process
Insert the cut-to-length aluminum pipe into the core shaft and push
the start-up button.
The header pipe punching machine automatically positions itself,
and punches holes in
the aluminum pipe.
The driving force of the equipment is provided by a hydraulic
system plus a lubrication system.
The header pipe punching machine is of a 4-column structure, and
has a mold
assembling and disassembling slideway
for easy replacement of different molds.
The header pipe punching machine has the characteristics of stable
working perfomance,
fast production speed, and convenient control. The electrical
control system relies on a PLC controller.
3. Technical Parameters
Working method: manual feeding, automatic forming and discharging; Collecting pipe to be produced per time: 1 pipe
Pipe outer diameter* wall thickness: according to customer's
requirement;
Pipe effective length: 200-650mm Slot center-to-center distance and tolerance: 5~12mm; ±0.05 mm; Slot forming time: 20 seconds per pipe; Total power: 7.5KW Hydraulic system working pressure: 8-21Mpa
pneumatic system working pressure: 0.5-0.8Mpa
overall dimension: 2500mm×2100mm×2750mm
equipment weight: 4T |
