Fully Automatic Radiator Production Line , Aluminium Radiator Core Builder Line

Ask Lasest Price
Brand Name :	WONDERY
Supply Ability :	100 Set/Sets per Year
Price :	Negotiable
Payment Terms :	L/C, T/T
Delivery Time :	90 days after receipt of down payment
Model Number :	ZPX-280
Certification :	CE

Add to Cart

Product Details
Company Profile

Fully Automatic Radiator Production Line , Aluminium Radiator Core Builder Line

Fully Automatic Radiator Production Line , Aluminium Radiator Core Builder Line

Product description

The fully-automatic high speed radiator core assembly line is designed specially for high volume production.

The radiator making machine line is comprised of the high speed radiator fin making machine, the fin and tube

distribution table, and the

radiator core builder machine.

The radiator core builder machine is also called as radiator core assembly machine,

aluminum radiator core assembly machine, core assembly table, core assembly machine, radiator core

assembly machine, radiator making machines.

Technical Parameters of Fin Machine Section

Production efficiency	Feeding speed: MAX 280m/min; cutting speed: MAX 80 times/min ; Coil inner diameter: 300mm; double coil single channel;
Operator	1 person
Fin forming accuracy	Fin height±0.02 ; fin pitch±0.05
Fin forming unit replacement time	Around 20mins
Electrical components	Delta, Taiwan; Schneider; LG, Omron or IFM, Germany
Pneumatic components	AIRTAC, Taiwan
Hydraulic components	Jeougang, Taiwan
Movement components	PMI, Taiwan
Control system	PLC and servo control;
Total power	380V/50Hz 3-phase 4-wire; 20KVA
Air source	0.5Mpa clean and dry air; consumption: 1.0 M³/min
Fin forming unit lubrication system	DS800 micro-spray precision lubrication system
Fin forming unit lubricant	Fin volatile oil
Equipment lubricant	22-32 mechanical oil
Overall dimension	5700X1500x2200 ; 6T

Product Parameters of Radiator Cores

No.	Item		Unit	Parameters
1	Flat tube length	L	mm	400---800
2	Flat tube quantity	N	pc	30-80
3	Flat tube width	B	mm	16--20mm (a fixed value)
4	Flat tube thickness	H	Mm	A fixed value
5	Flat tube layer		Layer	1
6	Flat tube center-to-center distance	A	mm	A=H+K
7	Fin height	K	mm
8	Fin width	W	Mm	W=B

Technical Parameters of Core Builder Section

Operator	1 person
Distribution movement time	≤1S/ line (1 fin and 1 flat tube being 1 line)
Product replacement time	MAX 30mins (reference value; varying with worker’s skillfulness and product specification)
Production capacity	≤ 90 S/core (based on 40 flat tubes per core; varying with worker’s operation and raw material)
Core line error	0(flat tube and fin for each line)
Electrical components	Mitsubishi Q series; Schneider, LG, Omron, IFM (Germany)
Pneumatic components	Airtac, Taiwan
Movement components	PMI, Taiwan
Control system	PLC+ servo drive
Total power	380V/50Hz 3-phase 4-wire; 10KVA
Air source	0.5Mpa clean and dry compressed air; consumption: 1.0 M³/min
Equipment lubricant	22-32 mechanical oil
Overall dimension	About 3400x1500x1200mm ; 2T

Our Company Info

Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various

domestic factories. We can supply the heat exchanger production line for auto radiators, condensers,

oil-coolers, heaters, or other products, and HVAC condensers and evaporators.

Auto Condenser Production Line

Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum

one-end or two-end chamfering machine; semi-automatic core builder; condenser

side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine;

aluminum brazing furnace.

Auto Radiator Production Line

Brazing radiator machines: fin making machine, radiator core assembly machine, plastic

tank crimping machine, leak detector, header and side plate mold, and brazing furnace; machines

mechanical radiator making machines: fin mold, tube-to-fin expansion machine,

tube-to-header expansion machine, plastic tank crimping machine, etc;

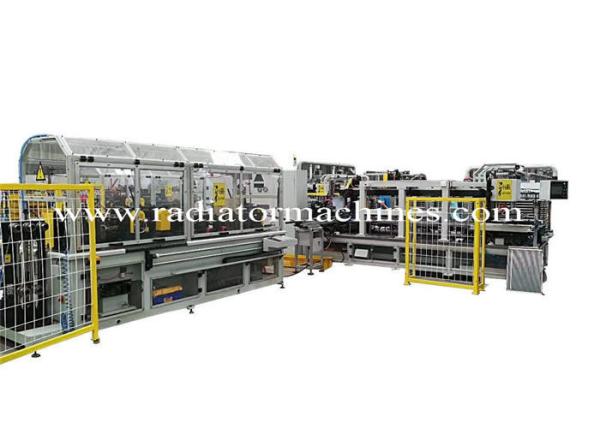

100m/min Aluminum Fin Radiator Making Machine Picture:

Fully Automatic Radiator Production Line , Aluminium Radiator Core Builder Line
