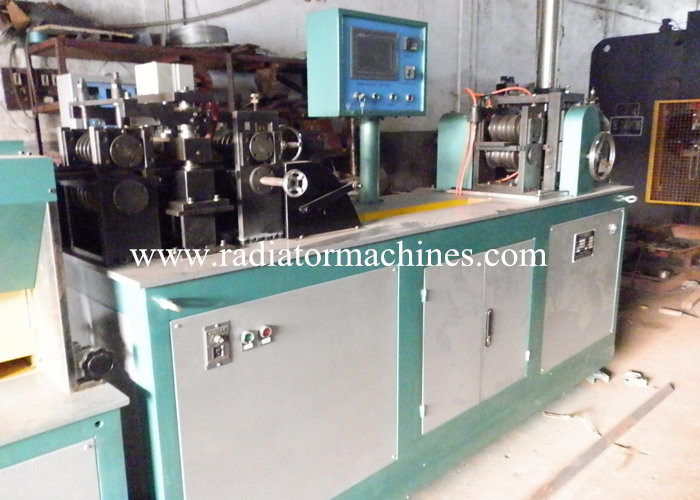

    Fully Automatic Copper Radiator Fin Machine 40 M / Min Flat Fin

    Fully automatic Copper Radiator Fin Machine 60 M/min Flat Fin Application

    The copper radiator fin machine is the special equipment for producing copper Fin. This equipment makes the copper fin according

    to the preset specification, and cuts it automatically. The machine is mainly comprised of driving, edge folding, and pattern forming

    tooling, counting, cutting, fin collection, and electrical control system.


    Main Characteristics

    The copper radiator fin machine is used to produce copper heat radiation Fin.

    The tooling of the machine can make louver or convex ribs, punch holds, and roll ribs. The servo driving system has a high

    positioning accuracy which assures the cutting accuracy.

    The fin forming machine is controlled by inverter. The running speed of the raw material is 0-40m/min.

    The copper radiator fin machine has counting function.

    The fin collecting mechanism can put in order the fins.


    Technical Parameters

    Cutting frequency: 0-60 times per min; length of fin: adjustable (stepless regulation);

    Running speed: 0-40m/min;


    Supply Scope

    No.ItemQ’tyBrand
    1Main working table1 setFactory make
    2Fin rolling tool1 setFactory make
    3Automatic cutting device1 setFactory make
    4Inverter1 setMitsubishi
    5Servo motor1 setMitsubishi
    6PLC1 setMitsubishi
    7Touch screen1 setKunluntongtai
    8Electrical control system1 setDELIXI
    9Other electrical components1 setDELIXI

    Company Introduction

    Our company mainly supplies the radiator making machines such as aluminum and copper radiator fin machine, radiator

    core builder machine, radiator plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc.
