4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic

    Buy cheap 4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic from wholesalers

    Buy cheap 4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic from wholesalers
    • Buy cheap 4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic from wholesalers
    • Buy cheap 4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic from wholesalers

    4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : SSKY-YY
    Certification : CE
    Supply Ability : 100 Sets per Year
    Price : Negotiable
    Delivery Time : 90 Days
    • Product Details
    • Company Profile

    4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic

    4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic


    Application


    The radiator plastic tank crimping machine is used for crimping the teeth of the header plates and locking the plastic tank

    tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. This

    servo type plastic tank crimping machine is used to handle products of various specifications. The crimping set moves step by step.


    Company Main Products

    Our company mainly supplies the radiator making machines such as radiator aluminum fin machine, radiator core builder machine,

    radiator plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc.


    Technical Parameters


    ItemData
    Header to header distance350-950mm
    Crimping methodStepping way
    Header Width30-120mm

    Suitable header plate length


    100-800mm
    Production CapacityAbout 40 cores/hour
    Working Forcehydraulic + pneumatic system
    Machine dimension2200 x 2000 x 1900mm (L,W,H)
    Machine weight3200 kgs

    Main Component Origin

    PLC, SIEMENS brand;

    HMI, SIEMENS brand;

    Servo system, SIEMENS brand;

    Buttons, SCHNEIDER or OMRON;

    Pneumatic cylinders: FESTO brand or SMC brand(except two special cylinders which are not available by FESTO or SMC brand);

    Intermediate relay: SCHNEIDER;

    Hydraulic system, quality domestic brand

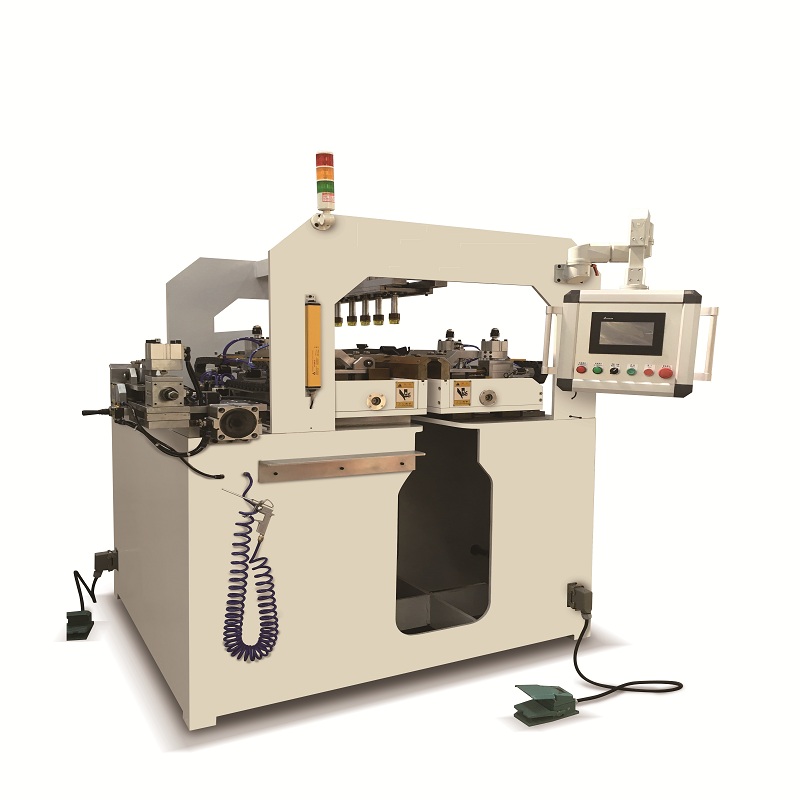

    Picture of Radiator Plastic Tank Clinching Machine (Servo and Pneumatic type)


    4 Side Radiator Plastic Tank Crimping Machine Hydraulic and Pneumatic
