High Speed Radiator Making Machine Harmonica Tube Straightening And
Cutting
Application
Usage: radiator making machine
Application: straightening and cutting the flat tubes
Technical Parameters
Production rate: 2.5 seconds per time (based on cut-to-length at
650mm)
Pipes to be straigthened and cutted per time: 2 pipes;
Flat aluminum tube thickness: 1-3mm;
Flat aluminum tube width: 14-32mm
Cut-to-length: larger than 100mm
Feeding length of the aluminum pipe: 200-900mm (twice or multiple
charges to cut the aluminum tube when the cut-to-length is very
large)
Length straightening accuracy <±0.2mm
Width straightening accuracy:±0.04mm/850nn
Thickness straightening accuracy:±0.02/850mm
Replacement time of coils: 3min
Preparation time for cutting tubes with a different width :≤15min
Cutting knife replacement time:≤5mins
Air source pressure: 0.6Mpa
Equipment weight: 2.8T
Main Machine dimension: 4500×850×1300mm (the area length is 15m if
the decoiler is included.)
Decoiler overall dimension: 1400×1300×1800mm ( 2 sets)
|
Introduction
The high speed aquipment is used for straightening and cutting
aluminum harmonica tubes of radiators.
The equipment is driven by a servo motor. The raw material is
conveyed by a precision linear guidance rail.
Cutting of the pipes is conducted through a revolving knife or a
linear knife. The equipment is also equipped
with a fully-automatic decoiler.
Coil inner diameter: 450-500mm; width: 300-330mm; decoiler bearing
weight: 300kg;
Coil feeding method: manually place the coil on the decoiler, and
screw up the coil expansion core;
Decoiler motor power: 0.75kw
The decoiling method is stable and reliable. The equipment has a
high cutting accuracy and a fast working speed.
It is able to cut different pipes by adjusting the distance of the
straightening rolling wheels. It takes twice or
multiple charges to cut the aluminum tube when the cut-to-length is
very large.
Company Introduction
Our company mainly supplies the radiator making machines for
brazing radiators and mechanical radiators.
The machines for making brazing radiators include the following:
aluminum radiator fin machine, radiator core builder machine,
radiator plastic tank crimping machine, air leak tester, header
mold, plastic tank mold, etc. The machines for making mechanical
radiators include the following: high seed fin press, progressive
fin die, aluminum radiator tube fin expansion machine, aluminum
radiator tube-header expansion machine, radiator plastic tank
clinching machine, hydraulic press, etc.

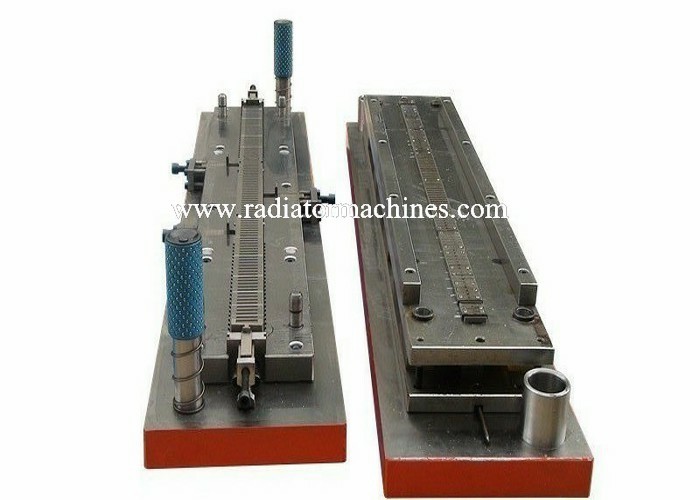

Picture of Header Mold we supply
