    1 Year Warranty Radiator Plastic Tank Crimping Machine For 4 Sides

    Our companyRadiator Plastic Tank Crimping Machine for 4 Sides

    Product Application

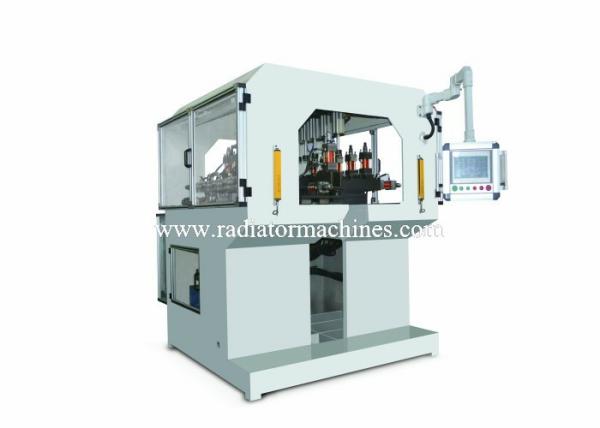

    The high quality radiator plastic tank crimping machine for 4 Sides is used for crimping the teeth of the header plates

    and locking the plastic tank tight to the core body. There is a sealed space between the crimped plastic tank, sealing

    gasket and header plate. This servo type plastic tank crimping machine is used to handle products of various specifications.

    The plastic tank crimping / clinching machine is divided into the long-side header crimping mechanism and end crimping mechanism.

    SPECIFICATIONS FOR High Quality Radiator Plastic Tank Clinching Machine
    Core Size
    Header to header distance
    mm
    350-950
    Header length
    mm
    100-800
    Producitivty
    Cores per hour
    pc
    about 40
    Working Mechanism
    hydraulic and pneumatic
    Overall Dimension
    L,W,H
    mm
    2200*2000*1900mm
    Machine Weight
    Net Weight
    kg
    3200

    Main Features

    1) The plastic tank clinching machine is PLC controlled, and the crimping program is set up through the touch screen.

    2) The touch screen can indicate the working status, and the control system stores radiator crimping parameters.

    3) The plastic tank crimping machine can crimp the header at 4 sides by one cycle.

    4) The plastic tank clinching machine can have dodge moves and step-forward moves.

    Packaging size of plastic tank crimpng machine
    Size
    2200(L) * 2000 (W) * 1900 (H)mm
    Weight
    3.2 T
    Packaging Details
    The normal package is plywood box with dessicant bag and wrapping film. Fumigation is not needed.

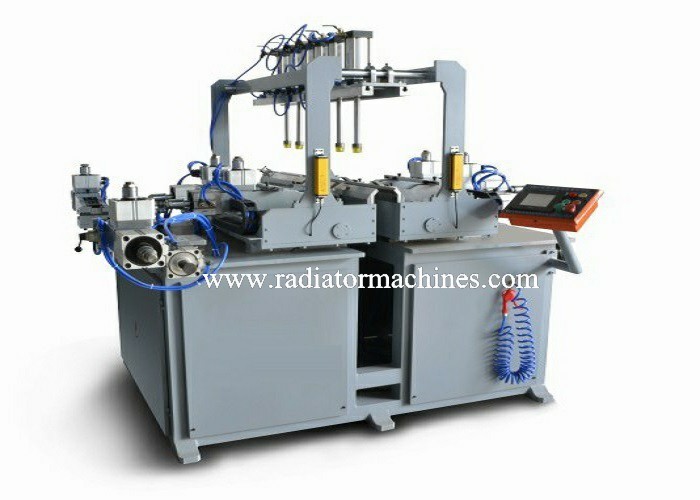

    Our company info:our company supplies the manual plastic tank crimping machine, semi-automatic pneumatic and servo
    type plastic tank clinching machine, hydraulic and pneumatic type plastic tank crimping machine, and fully automatic
    plastic tank clinching machine.
