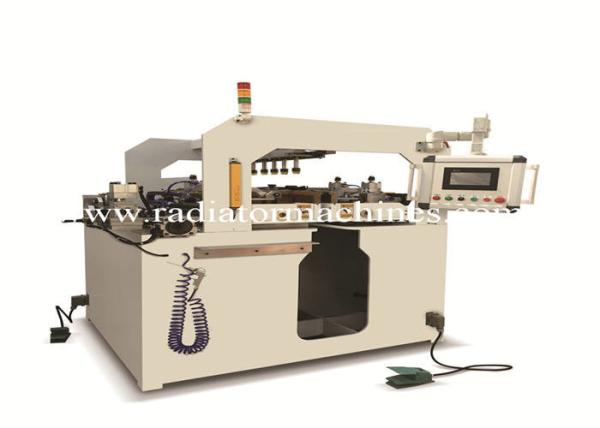

Servo Type Radiator Plastic Tank Crimping / Clinching Machine 30
Cores per Hour
Main Application
The radiator plastic tank clinching machine is used for crimping
the teeth of the header plates and locking the plastic tank
tight to the core body to form a sealed space between the crimped
plastic tank, sealing gasket and header plate.
Main Characteristics
The radiator plastic tank crimping machine drives the left and
right crimping device forward through the ball screw
driven by the servo motor.
The equipment is PLC controlled, and the crimping program is set up
through the touch screen. The touch screen
can indicate the working status, and the control system stores
various radiator crimping parameters. The equipment
has functions such as plastic tank water inlet dodge and virtual
travel speed-up, making itself suitable for crimping of
plastic tanks and header plates of different specifications. The
radiator plastic tank crimping machine is divided into a
long header and a short header crimping mechanism which separately
crimps the long header plate and the short header
plate. The equipment has a fast speed and a stable performance.
Technical Parameters
Max radiator size: 850*1000*140mm (header length, header to header
distance, and header width); Step distance: adjustable;
Crimped teeth quantity: max 110 pieces; Safety device: photoelectric light curtain; Voltage: 380V; 3P;50Hz;
Overall dimension for reference: 1900×1600×1800mm (L*W*H); Working pressure: max 0.6Mpa (pneumatic);
Average hourly output: about 300 cores crimped per 8 hours (decided
by product specification and individual worker speed); Rated power: 2.5kw.
|
Operation Method
a) manual operation: the radiator plastic tank crimping / clinching
machine is operated step by step by
operation on the touch screen. This is usually
carried out during testing and adjustment.
b) automatic running: only when the machine is reset, it can run
automatically.
c) interlock device: the radiator plastic tank crimping machine has
interlock device to avoid movement mistake.
When one movement is not finished, the next following movement
can’t be started (both at the manual and automatic mode).
Equipment Structure
The radiator plastic tank crimping / clinching machine is mainly
comprised of machine body, clamping mechanism,
long-side header crimping
mechanism, and short-side header crimping mechanism, electrical
control system, and pneumatic control
system.
Main Component Origin
PLC, DELTA brand; HMI, MCGS brand; Servo motor, DELTA brand; Intermediate relay, Omron, Japan; Buttons, Schneider; Air switch, Schneider; Pneumatic cylinders: AIRTAC brand; Linear rail: PMI brand ; Notes: The supplier might change some of the above components to
other equivalent brands without noticing the buyer.
|
Radiator Plastic Tank Crimping Machine
Feature: servo and pneumatic;
use: for smaller radiator cores;
