    Semi Automatic Radiator Core Builder Machine Pneumatic Tube Distribution Function

    Ask Lasest Price
    Brand Name : WONDERY
    Supply Ability : 100 Sets per Year
    Price : Negotiable
    Model Number : ZPJ-780*680mm
    Certification : CE
    Delivery Time : 90 Days
    • Product Details
    • Company Profile

    Semi Automatic Radiator Core Builder Machine Pneumatic Tube Distribution Function

    PNEUMATIC RADIATOR CORE BUILDER MACHINE WITH TUBE DISTRIBUTION DEVICE


    Introduction


    The radiator core builder machine is used to assemble cores based on a combined control of a mechanical

    and pneumatic mechanism and the electrical control system of PLC, and touch screen. The flat tubes, fins,

    side plates and header plates are manually placed on the work table.


    Features

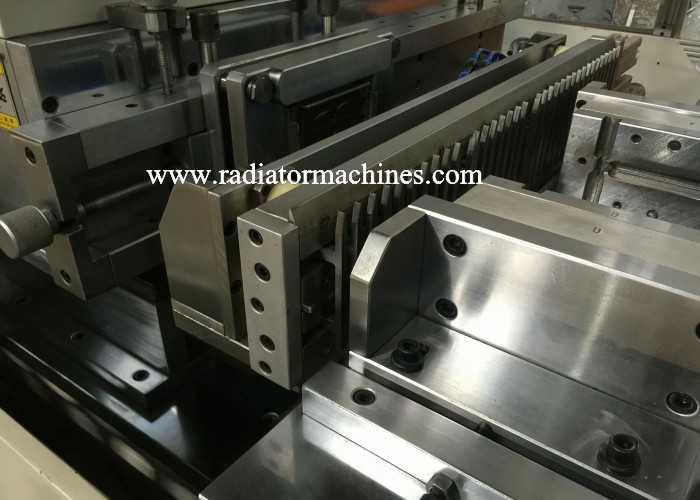

    The flat tubes are distributed through a servo tube distribution device. And the overall comb teeth structure could ensure

    the flat tube positioning accuracy.

    The radiator core builder machine is designed with 2-hand push buttons for safety operation.

    The equipment is easy for operation, adjustment, and tooling replacement.


    Parameters of Radiator Core Builder Machine

    Core DimensionCore height direction350-780mm
    Core width direction200-680mm
    Flat Tube Layers1 layer/2layers
    Tube Laying ModeAutomatic Feed Into Material Silo/ Manual
    Flat Tube Flaring ModeAutomatic /Manual
    Fin Laying ModeBy fin tray /Manual
    Production CapacityAround 30sets/hour
    Drive ModeServo /Pneumatic
    Overall Dimension2300*2500*1800mm
    Weight2300kg

    Company Introduction

    Our company mainly supplies the radiator making machines for brazing radiators. The machines for making

    brazing radiators include the following: aluminum radiator fin machine, radiator core builder machine, radiator

    plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc. The machines for making

    mechanical radiators include the following: high seed fin press, progressive fin die, aluminum radiator tube fin

    expansion machine, aluminum radiator tube-header expansion machine, radiator plastic tank clinching machine,

    hydraulic press, etc.
