    High Speed Radiator Fin Machine , Aluminum Fin Stamping Machine 300mm Wide

    Ask Lasest Price
    Brand Name : WONDERY
    Supply Ability : 100 Set/Sets per Year
    Price : Negotiable
    Model Number : CPJ-CY-300
    Certification : CE
    Delivery Time : 90 Days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

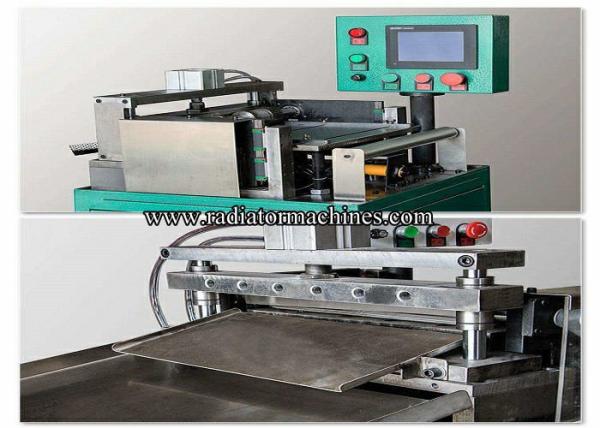

    High Speed Radiator Fin Machine , Aluminum Fin Stamping Machine 300mm Wide

    High Speed Radiator Fin Machine , Aluminum Fin Stamping Machine 300mm Wide


    Product Application

    Aluminum radiator fin machine is also called as fin stamping machine, and it is used to produce the following fins:

    straight and flat fins,serrated fins, perforated fins, wavy fins, louvered fins and others.


    SPECIFICATIONS FOR Aluminum Radiator Fin Machine

    Technical Parameters

    Power supply



    customized 3P 5 wire

    Model Number

    mm

    CPJ8.5*10, CPJ14*10, CPJ16*10,CPJ19*10,CPJ24*10mm

    Punching force

    kg

    4200

    Fin Size

    Fin Width

    mm

    max 300

    Fin Size

    mm

    customized

    Fin height accuracy

    mm

    +/-0.01-0.05mm

    Overall Size

    L,W,H

    mm

    1500*800*1550

    Total Weight



    kg

    1500


    Main Features

    1) The column bushing of the radiator fin machine is made of high-strength imported wear resistant material. It has a service

    life of more than 1 million times.

    2 ) The slide of the die is of rolling ball structure which has less wear and tear and a longer service life.
    3 ) The tension control device can keep the feeding speed matching with the cutting speed.
    4 ) The touch screen allows the operator to set the parameters directly.
    5 ) The decoiler is an auxiliary to the fin punching machine. It is equipped with proximity switch and control

    delay switch so as to control the decoiling speed.
    6) The fin punching machine is already installed with one set of die for producing fin of one specific specification.


    PACKING

    Packaging

    Size

    1500*800*1550mm (L,W,H)

    Weight

    1.5T

    Packaging Details

    The normal package is plywood box with dessicant bag and wrapping film.


    Company Introduction

    Our company mainly supplies the radiator making machines such as aluminum radiator fin forming machine,

    radiator core builder machine,

    radiator plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc.
