    Electric Resistance Bogie Hearth Furnace RT2-460-12 1200 Degree Celsius

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : RT2-460-12
    Certification : ISO CERTIFICATE
    Supply Ability : 100 Sets per Year
    Price : Negotiable
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

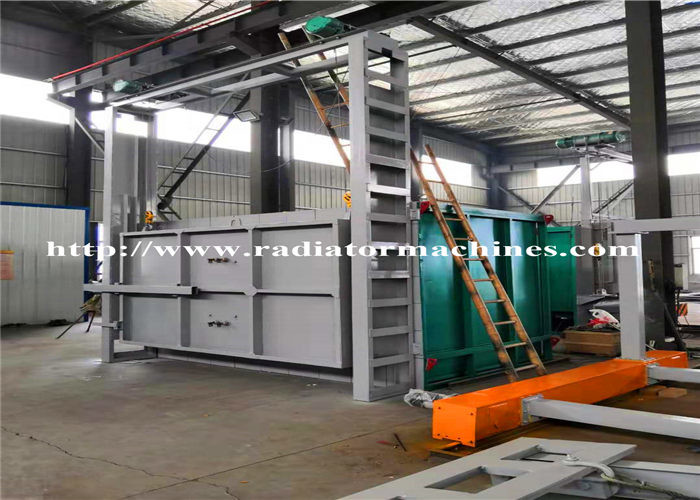

    Electric Resistance Bogie Hearth Furnace RT2-460-12 1200 Degree Celsius

    Electric Resistance Bogie Hearth Furnace RT2-460-12 1200 Degree Celsius


    Application

    The RT2-460-12 resistance bogie hearth furnace is mainly used for heat treatment of casting and steel parts.


    Main technical parameters

    No.NameTechnical parameters
    1Rated power460kW+5%(1-100%)adjustable
    2Power supply380V, 3phase, 50Hz
    3Rated temperature1200℃
    4Empty furnace temperature rise speed≤1.5h up to 800℃
    5Temperature control zone3 zones
    6Effective working size2500×2500×2000mm(L×W×H)
    7Connection method of heating elements
    8Temperature uniformity±10℃
    9Temperature accuracy±2℃
    10Empty furnace power consumption≤18%
    11Temperature control method

    SCR, PID regulator,

    Guolong temperature controller with overtemperature alarm, paperless recorder

    12Furnace surface temperatture rise<45℃+ room temperature
    13Heating element material0Cr27AL7Mo2 (belt material)
    14Hearth plate materialNi7N, 30mm thickness
    15Charging methodThe workpiece is lifted onto the trolley, driven the trolley into the hearth and start to heating
    16Furnace liningHigh temperature refractory fiber
    17Furnace door opening methodManually opened to the right side
    18Bogie driving power5.5KW reducer
    19Heating side5 sides heating

    Structural Introduction

    The bogie hearth furnace is mainly comprised of furnace body, lining, furnace door and door compression system,

    bogie, heating element, and temperature control system.


    Supply Scope

    No.NameQ’tyRemark
    1Furnace body1 set
    2Bogie1 setIncluding hearth plate
    3Electrical driving system1 set1 set for bogie
    4Heating element1 setResistance strip
    5

    Temperature control system

    1 set
    6Control cabinet1 pc1800*800*600
    7Guolong temperature controller3 pcs
    8SCR9 pcs
    9Compensation lead wire50 meter
    10Thermal couple3 pcsK type
    11Electrical components1setSCR, air switch, ammeter, voltmeter, heat relay, and switches

    Main Features

    1) The trolley type bogie hearth furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

    2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.

    3) Heating components: high temperature resistance alloy wires and strips.

    4) Low noise, energy-friendliness, and stable performance.


    5) Advanced CAD design.


    6) Years of experiences in heat treatment process. Electric Resistance Bogie Hearth Furnace RT2-460-12 1200 Degree Celsius
