    PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated

    Ask Lasest Price
    Brand Name : WONDERY
    Certification : ISO CERTIFICATE
    Supply Ability : 100 Set/Sets per Year
    Price : Negotiable
    Model Number : RT2-200-12
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated

    PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated


    Company Info

    Our company is a professional supplier of heat treatment furnaces such as electric resistance bogie hearth furnace,

    car bottom furnace,gas fired bogie hearth furnace, gas fired mesh belt furnace, electric resistance mesh belt furnace,

    carburizing furnace,nitriding furnace, steel wire annealing furnace, salt bath furnace, box type resistance furnace,

    aluminum melting furnace,crucible melting furnace, gas fired melting furnace, gas fired aluminum melting furnace,

    gas fired holding furnace, electric resistance aluminum holding furnace, aluminum melting furnace for die casting machine,

    aluminum quenching furnace, etc.


    Product Application

    The resistance bogie hearth furnace is mainly used for heat treatment of metal parts.


    SPECIFICATIONS FOR Hot sales Electric Bogie Hearth Heat Treatment Furnace


    Temperature control

    system

    Rated Temperature

    1200

    common heating temperature

    400-1100

    Furnace body surface temperature

    ≤ 55 + room temperature

    Temperature control system accuracy

    ≤±1

    Uniformity of furnace temperature

    ≤±10

    Electrical System

    Voltage


    according to customer's

    Temperature Control Method


    PID

    Components brand


    Siemens, Schneider, CHINT(or other quality domestic or overseas brand)


    Mechanical system

    door lifting mechanism


    electric hoist

    bogie driving system


    reducing motor

    door and bogie moving speed

    m/min

    6-8

    Refractory lining

    hearth lining


    aluminum silicate fiber

    bogie lining


    refractory brick



    Technical Parameters of Bogie Hearth Furnace RT2-200-12


    No.

    Item

    Technical Parameters

    1

    Rated power

    200kW+5% (1-100%) adjustable

    2

    Power supply

    380V,3P,50Hz

    3

    Rated temperature

    1200℃

    4

    Empty furnace temperature rising speed

    ≤1.5h to receive 800℃

    5

    Control zone

    2 zones for temperature and 2 other points for measuring the temperature, 4 thermal couples in total

    6

    Effective working size

    3000×1100×1100mm (L*W*H)

    7

    Heating element connection

    8

    Temperature uniformity

    ±10℃

    9

    Instrument control accuracy

    ±2℃

    10

    Empty furnace power consumption

    ≤18%

    11

    Temperature control method

    SCR *PID regulator* Shimaden temperature PLC+HMI controller

    12

    furnace surface temperature rise

    <45℃+ room temperature

    13

    Heating element material

    0Cr27AL7Mo2 (strip) 5-wall heating

    14

    Bogie face plate

    ZG40Cr24Ni7SiN

    15

    Loading method

    Product loaded on the bogie, and then bogie moves into the furnace

    16

    Furnace lining

    High temperature refractory fiber structure

    17

    Furnace door opening method

    Electrical up-down, spring compression sealing structure

    18

    Bogie in/out method

    3KW cycloidal pin wheel reducer

    Main Features

    1) Hot sales Electric Bogie Hearth Heat Treatment Furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

    2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.

    3) Heating components: high temperature resistance alloy wires and strips.

    4) Low noise, energy-friendliness, and stable performance.


    5) Advanced CAD design.


    6) Years of experiences in heat treatment process.

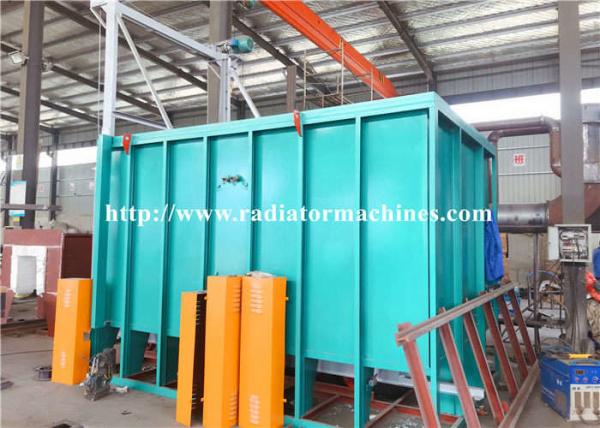

    Pictures of resistance bogie hearth furnace


    PLC Controlled Bogie Hearth Furnace For Heat Treatment ISO Certificated
