    Trolley Type Heat Treatment Furnace For Quenching Annealing High Chrome Parts

    Ask Lasest Price
    Brand Name : WONDERY
    Certification : ISO CERTIFICATE
    Supply Ability : 100 Set/Sets per Year
    Price : Negotiable
    Model Number : RT2-280-11
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    Trolley Type Heat Treatment Furnace For Quenching Annealing High Chrome Parts

    Trolley Type Heat Treatment Furnace For Quenching Annealing High Chrome Parts

    Product Application

    Trolley Type Resistance Bogie Hearth Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving

    60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group,

    trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is

    applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron,

    rolls, steel balls, 45# steel parts and others.

    Main Technical Parameters of Heat Treatment Furnace


    No.ItemTechnical Parameters
    1Rated power280kW+5% (1-100%) adjustable
    2Power supply380V,3P,50Hz
    3Rated temperature1150℃
    4Empty furnace temperature rising speed≤2.5h to reach 900℃
    5Control zone2 zones for temperature and 2 other points for measuring the temperature, 4 thermal couples in total
    6Effective working size2500×2000×2000mm (L*W*H)
    7Heating element connection
    8Temperature uniformity±5℃
    9Instrument control accuracy±2℃
    10Empty furnace power consumption≤18%
    11Temperature control methodSCR, PID regulator, Shimaden temperature controller, over-temperature alarm
    12furnace surface temperature rise<45℃+ room temperature
    13Heating element material0Cr27AL7Mo2 (strip) 5-wall heating
    14Bogie face plateCr25Ni20
    15Loading methodProduct loaded on the bogie, and then bogie moves into the furnace
    16Furnace liningHigh temperature refractory fiber structure
    17Furnace door opening methodElectrical up-down, electric push rod compression sealing structure
    18Bogie in/out method3KW cycloidal pin wheel reducer
    19Loading capacity5Ton

    Temperature Control System

    Temperature control: the bogie hearth furnace adopts Shimaden intelligent temperature controller (Japan brand) to

    control the temperature which has self-tuning function to calculate the ideal PID parameter and achieve a temperature

    stability. The heat treatment furnace has 2 temperature control zones for controlling the linkage between the temperature

    and the motor movements.

    Each zone of the bogie hearth furnace is set with an over-temperature alarm. When the furnace works, the heating loop works

    according to the set program of the temperature controller.

    The control actuation system of the bogie hearth furnace is a large-power triggering one complete with a radiator and

    an air cooling system. The heating loop is equipped with ammeter, voltmeter, heating element on-off indicator, power-on

    interlock protection, and safe earthing measures.

    Main Features

    1) The trolley type bogie hearth furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

    2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with

    the traditional brick hearth.

    3) Heating components: high temperature resistance alloy wires and strips.

    4) Low noise, energy-friendliness, and stable performance.


    5) Advanced CAD design.


    6) Years of experiences in heat treatment process.

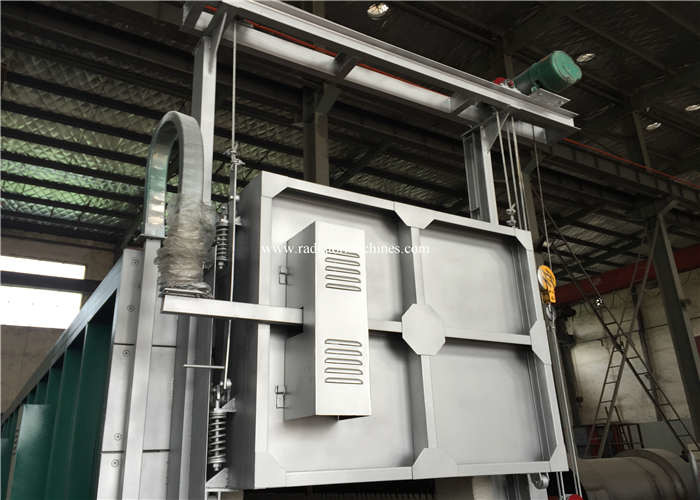

    Pictures of Electric Resistance Bogie Hearth Furnace

    Trolley Type Heat Treatment Furnace For Quenching Annealing High Chrome Parts
