Customized Gas Fired Furnace , Heat Treatment Furnace Stable Performance

Personal Customized Gas Fired Car Bottom Furnace For Heat Treatment

Product Application

Personal Customized Gas Fired Car Bottom Furnace For Heat Treatment is state standard energy saving cyclic furnace.

It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high

aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail.

This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast

parts, cast iron, rolls, steel balls, 45# steel parts and others.

SPECIFICATIONS FOR Personal Customized Gas Fired Bogie Hearth Furnace
Temperature control system	Rated Temperature	℃	1300
	common heating temperature	℃	400-1250
	Furnace body exterior temperature	℃	≤ 55 + room temperature
	Temperature control system precision	℃	≤±1
	Uniformity of furnace temperature	℃	≤±10
Gas burning system	Fuel		natural gas
	Gas calorific value	Kcal/m3	7000
	Gas supply pressure	Mpa	0.05-0.1
Mechanical system	door lifting mechansim		electric hoist
	bogie driving system		reducing motor
	door and bogie moving speed	m/min	6-8
Refractory lining	hearth lining		aluminum silicate fiber
Refractory lining	bogie lining		refractory brick

Technical Parameters

No.	Item	Technical Parameters
1	Gas pressure before furnace	≤1kg
2	Fuel	Natural gas
3	fuel gases calorific value	Approx 21000kcaL/m3
4	Heating zone	4 zones
5	Max temperature	900℃ ( normal used temperature 750℃ )
6	Loading capacity	Approx 34 ton/furnace
7	Temperature measurement accuracy	±2℃
8	Gas consumption	72m3/h (based on the loading capacity 34 ton, and the temperature rise speed is 150℃/hour )
9	Gas pipe before furnace	Gas flow≥80m3/h
10	Air consumption	2500m3/h
11	Temperature uniformity	±15℃
12	Effective working size	3300×1900×2300mm(D×H×W)
13	Hearth size	3600×2300×2800mm(D×H×W) (the heigh includes the base support)
14	Quantity and model of burner	8pcs/230KW, direct flame burner, on lower part of the furnace side
15	Temperature control method	PID regulation + PLC touch screen control (Siemens)
16	Max temperature rise speed	60-150℃/h, adjustable
17	Air preheat temperature	100-150℃ ( the furnace temperature above 800℃)
18	Furnace lining	high quality heat-resistant fiber compression block structure, fixed by 304 stainless steel
19	Operating voltage	415V, 3 phase, 4 wire; 220V, 2 phase, 50Hz
20	Furnace door opening method	the furnace door is fixed on the bogie
21	Furnace door sealing method	Sealed by 2 sets electric push-rod
22	Bogie driving power	7.5KW motorized chain sprocket driving mechanism, speed 6-8m/min
23	Furnace side sealing method	Sealed by 2 sets electric push-rod
24	Furnace back sealing method	Sealed by a spring compacted cotton block
25	Consumption index	Heat efficiency at full loadη≥40%

Main Features

1) Personal customized gas fired car bottom furnace for heat treatment has a shell of welded steel plates and

sectional steel. The structure is of thick material.

2) The hearth wall lining of the bogie hearth furnace is an all-fiber structure, saving about 60% of power consumption compared

with the traditional

brick hearth.

3) Low noise, energy-friendliness, and stable performance.

4) Advanced CAD design.

5) Years of experiences in heat treatment process.

Control Cabinet

Name: GGD type electrical control cabinet

Brand: CHINT, SIEMENS, Schneider, Omron, etc.

Original: China, Germany, French, Japan, etc.

Burner

Name: SINON burner (Germany technology)
Brand: SINON
Original: China

MODEL TABLE

Hearth Size (mm) LWH	Max Temperature ( ℃ )	Max Loading Capacity ( kg )
950×500×450	1200	500
1100×600×400	1200	800
1200×600×450	1200	1000
1500×750×600	1200	1500
1800×900×600	1200	2500
1800×900×650	1200	3500
2000×900×700	1200	4000
2000×1000×750	1200	4200
2200×1000×800	1200	5000
2200×1050×750	1200	6000
2400×1200×800	1200	6500
2500×1300×900	1200	7000
2500×1400×900	1200	8000
2800×1500×900	1200	9000
3000×1500×900	1200	10000
3000×1530×950	1200	11000
3200×1530×950	1200	12000
3500×1500×1200	1200	15000
4000×1500×1200	1200	18000
4500×1500×1200	1200	20000
4500×1600×1200	1200	22000
5200×1500×1200	1200	25000
5500×1500×1200	1200	28000
6000×1500×1200	1200	30000
6500×1800×1200	1200	35000
7000×1800×1200	1200	38000
7200×2000×1200	1200	40000
7500×1800×1800	1200	42000
8500×2000×1500	1200	52000
9000×2200×1600	1200	60000

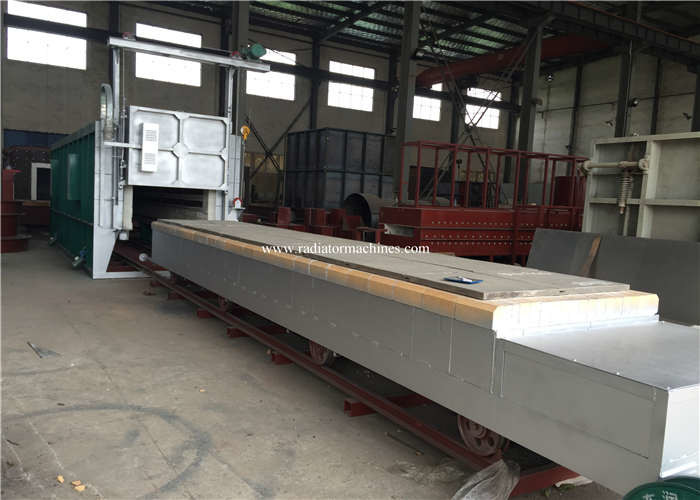

Picture of Electric Resistance Bogie / Car Hearth Furnace
