    Industrial Resistance Bogie Hearth Furnace, Car Bottom Furnace Tilting Bogie

    Industrial Resistance Bogie Hearth Furnace, Car Bottom Furnace Tilting Bogie

    Application

    The electrical bogie hearth furnace is mainly used for heat treatment of high - manganese steel, chromium steel

    and other metal parts. The bogie hearth furnace is designed with the tilting bogie so as to meet the fast quenching

    requirement of high manganese steel.


    Main Technical Parameters

    No.ItemTechnical Parameters
    1Rated power140Kw+5% (1-100%) adjustable
    2Power supply380V, 3P, 50Hz
    3Rated temperature

    1150℃

    (normal working temperature:1050-1070℃)

    4Empty furnace temperature rise speed≤2hours to reach 900℃
    5Control zone1 zone
    6Effective working size1500×1500×1000mm(L×W×H)
    7Heating element connection
    8Temperature uniformity≤±10℃
    9Temperature measurement accuracy±2℃
    10Empty furnace power consumption≤18%
    11Temperature control methodSCR; PID regulator; Guolong temperature controller with overtemperature alarm;
    12furnace surface temperature rise<45℃ + room temperature
    13Heating element0Cr27AL7Mo2 (strip)
    14Bogie hearth plateZG40Cr24Ni7SiN, total thickness 30mm
    15Loading methodProduct loaded on the bogie, and then bogie moves into the furnace
    16LiningHigh temperature refractory fiber
    17Furnace door opening methodElectrically lifted up-down, spring compression mechanism
    15Bogie moving methodBy the reducer
    16Bogie driving power1.5KW cycloidal pin wheel reducer
    17Tilting methodHydraulic tilting
    18Tilting angle≤45 degree
    19Bogie hearth furnace configurationOne set of Bogie hearth, one set of furnace door and one set of tilting mechanism

    Structural Introduction

    The bogie hearth furnace is mainly comprised of furnace body, lining, furnace door and door

    compression system, bogie, heating element, hydraulic tilting system, and temperature control system.


    Supply Scope

    No.ItemQ’tyNotes
    1Furnace body1 set
    2Bogie1 setIncluding bogie hearth plate
    3Hydraulic system1setIncluding the oil cylinder and the oil pipe
    3Electrical driving system1 set1 set for bogie and 1 set for door
    4Heating element1 setResistance strip
    5Temperature control system1 set
    6control cabinet1pc1800*600*400mm
    7Guolong temperature controller1pc
    8SCR3pcs
    9Compensation lead wire20m
    10Thermal couple1 pc0-1200
    11Electrical components1 setSCR, air switch, ammeter, voltmeter, heat relay, and switches

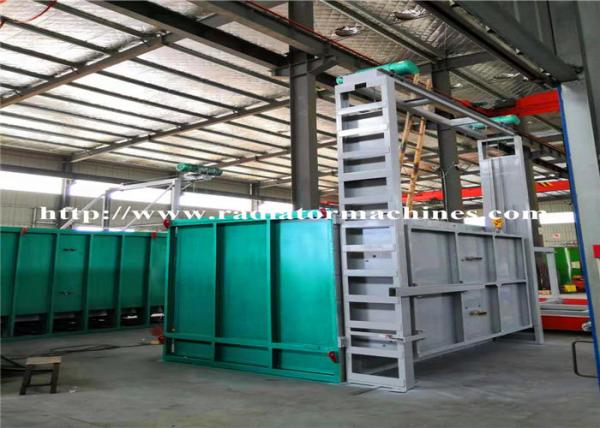

    Picture of Car Bottom Furnace:

    Industrial Resistance Bogie Hearth Furnace, Car Bottom Furnace Tilting Bogie
