    Natural Gas Fired High Efficiency Gas Furnace For High Chrome Parts

    Ask Lasest Price
    Brand Name : WONDERY
    Certification : CE Certificate
    Supply Ability : 100 Sets per Year
    Price : Negotiable
    Model Number : RTQ
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    Natural Gas Fired High Efficiency Gas Furnace For High Chrome Parts

    Natural Gas Fired High Efficiency Gas Furnace For High Chrome Parts

    Product Application

    High Quality Variable Capacity Gas Type Bogie Hearth Furnace is state standard energy saving cyclic furnace.

    It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high

    aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and

    integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts,

    high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others.

    SPECIFICATIONS FOR High quality Variable capacity Gas Type Bogie Hearth Furnace
    Temperture contral
    system
    Rated Temperature
    1300
    common heating temperature
    400-1250
    Furnace body exterior temperature
    ≤ 55 + room temperature
    Temperature control system precision
    ≤±1
    Uniformity of furnace temperature
    ≤±10
    Gas burning system
    Fuel
    natural gas
    Gas calorific value
    Kcal/m3
    7000
    Gas supply pressure
    Mpa
    0.05-0.1
    Mechanical system
    door lifting mechansim
    electric hoist
    bogie driving system
    reducing motor
    door and bogie moving speed
    m/min
    6-8
    Refractory lining
    hearth lining
    aluminum silicate fiber
    bogie lining
    refractory brick

    Main Features

    1) The trolley type bogie hearth furnace has a shell of welded steel plates and sectional steel.

    The structure is of thick material.

    2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared

    with the traditional brick hearth.

    3) Heating components: high temperature resistance alloy wires and strips.

    4) Low noise, energy-friendliness, and stable performance.


    5) Advanced CAD design.


    6) Years of experiences in heat treatment process.

    Electrical control system

    The component brands could be according to the customer's requirement for the bogie hearth furnace.


    No.ItemSpecificationOrigin
    1Temperature controllerHoneywell
    2RelayOmron
    3Electrical componentsButtons, indication lights, etcCHINT or DELIXI, China
    4Cabinet bodyChangzhou

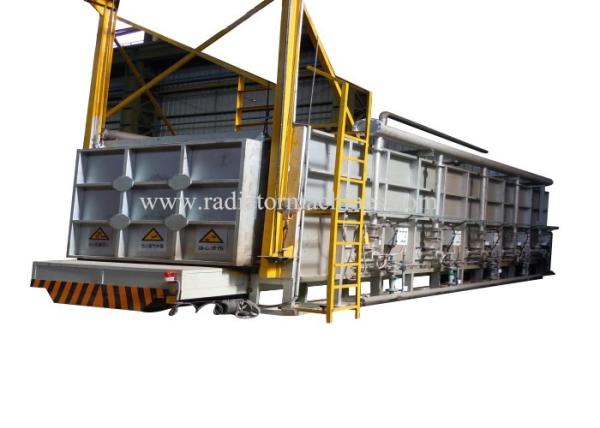

    Picutre of bogie hearth furnace in our workshop: Natural Gas Fired High Efficiency Gas Furnace For High Chrome Parts
