    3 Phase 380v 50Hz Mesh Belt Furnace With Long Service Life CE Certificated

    Ask Lasest Price
    Brand Name : WONDERY
    Certification : CE
    Supply Ability : 20 Sets per Quarter
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 90 Days
    Model Number : RCWA
    • Product Details
    • Company Profile

    3 Phase 380v 50Hz Mesh Belt Furnace With Long Service Life CE Certificated

    3 Phase 380v 50Hz Mesh Belt Furnace With Long Service Life CE Certificated

    Main Features

    1) To meet the production needs of fastening parts, the furnace employs Taiwan technology, and improves its

    energy-saving effect in the area of refractory lining.
    2) The production line employs low-voltage heating through the transformer to prolong the service life of the heating tubes.
    3) The mesh belt is supported by the support rollers with synchronized movement so that the mesh belt bears

    a minimum tension.
    4) The rollers are supported by special high-pressure sealed bearing.
    5) The mesh belt is designed with abnormal transportation alarm device to assure the stable movement of the

    mesh belt.
    6) The drip-in atmosphere is gasified by a gasifier and then sent into the furnace. The atmosphere is monitored

    and controlled continuously by an oxygen probe.
    7) The hot mesh belt returns back to the entrance of the furnace and preheats the cold partss, which saves

    energy greatly.


    Application

    The mesh belt heat treatment furnace is widely used for heat treatment of fasteners such as drywall screw, concrete nails, auto

    fasteners, etc.

    Model Table
    ModelRated Power (Kw)Rated temperature (degree celcius)

    Working size

    (mm)

    Productivity

    (kg/h)

    RCW-1A100920400*400*100160~200
    RCW-2A110920400*4700*100180~250
    RCWA-2A120920500*4000*100180~250
    RCWA-2B130920500*4700*100250~300
    RCWA-3160920600*4700*100300~350
    RCWA-3A160920500*6000*100300~350
    RCWA-4180920600*6000*100350~420
    RCWA-4A180920800*4700*100450~520
    RCWA-5220920800*6000*100450~520
    RCWA-6300920800*7600*100550~720
    RCWA-73809201000*7600*100880~1000

    COMPANY INFO


    Our furnace is a professional supplier of heat treatment furnaces. Our main products are: bogie hearth furnace, pit type furnace,

    mesh belt furnace, gas fired mesh belt furnace, roller hearth mesh belt furnace, pit type annealing furnace, auto spring

    mesh belt tempering furnace, metal melting furnaces, etc.

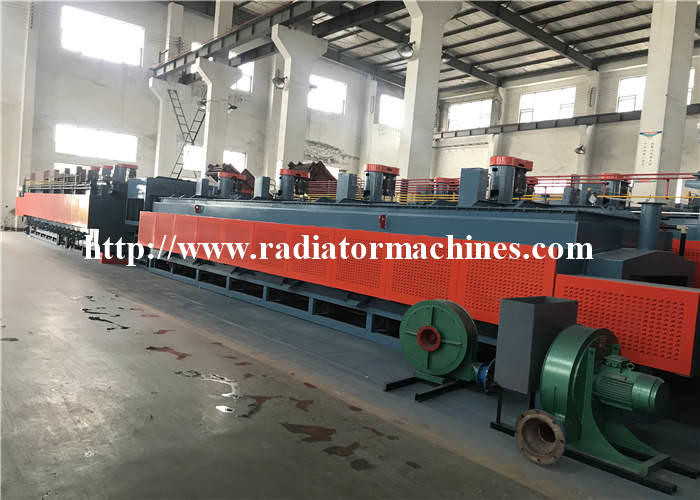

    Mesh belt furnace in our workshop:


    3 Phase 380v 50Hz Mesh Belt Furnace With Long Service Life CE Certificated
