    Electric Resistance Aluminum Holding Furnace Low Pressure Casting

    Ask Lasest Price
    Brand Name : WONDERY
    Certification : CE CERTIFICATE
    Supply Ability : 15 Sets per Month
    Price : Negotiable
    Model Number : WR-BDD
    Delivery Time : 30 Days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Electric Resistance Aluminum Holding Furnace Low Pressure Casting

    Electric Resistance Aluminum Holding Furnace Low Pressure Casting


    Features

    1) The furnace adopts the high strength steel plate with a great strength.

    2) The resistance heating method has a big heat radiation range, and a low metal burning loss. The heating

    element is equipped with the protection casing pipe of good conductivity.

    3) Direct measurement of aluminum liquid temperature. The furnace has double temperature control and

    measurement, which enables a control accuracy of ±5℃ of the aluminum liquid.

    4) Lining is made of imported high-quality material, and casted as a whole. The lining has a life of 5 years

    based on normal use.

    5) The furnace is equipped with a safety valve to prevent over-pressure.

    6) The furnace can move horizontally and up-down based on the customers requirement.

    Technical Parameters

    Model

    Holding Capacity (kg)

    Rated Power (kw)

    Max Pressure (Mpa)

    Overall Dimension (mm)

    L* W*H

    WR-BDD-300

    300

    21

    0.09

    1900*1600*1200

    WR-BDD-500

    500

    27

    0.09

    2100*1800*1300

    WR-BDD-800

    800

    32

    0.09

    2300*1900*1400

    WR-BDD-1000

    1000

    36

    0.09

    2400*2000*1450


    Company Product:
    Our company supplies the various metal melting furnaces for zinc, lead, and copper. We have the following

    products: Crucible melting furnace, gas fired metal melting furnaces, oil fired metal melting furnaces,

    aluminum holding furnace, continuous aluminum melting furnace, rotary furnace, ladle preheater, ladles, etc.

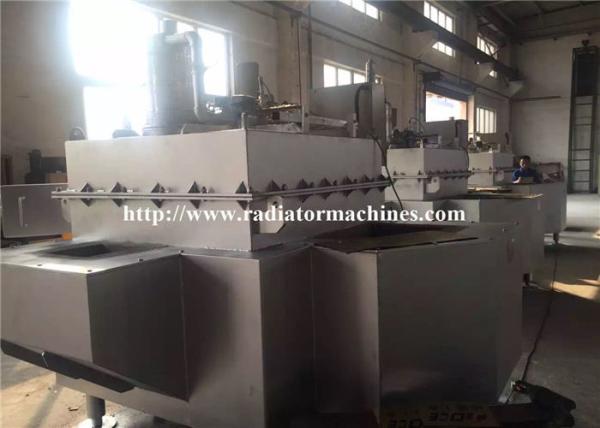

    Big size aluminum continuous melting furnace in our workshop:


    Electric Resistance Aluminum Holding Furnace Low Pressure Casting
