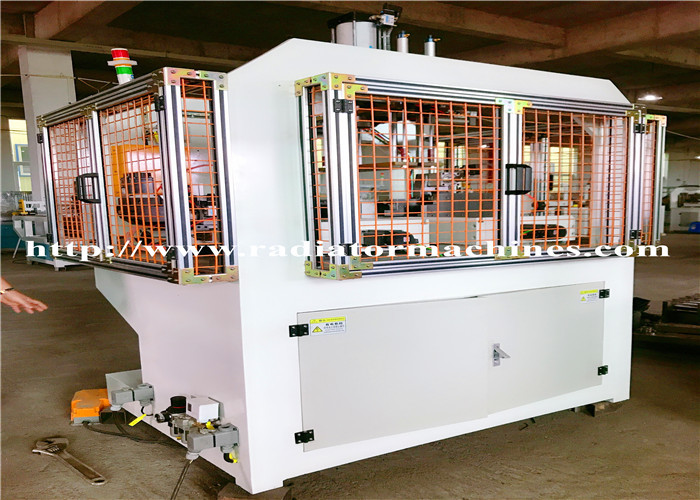

Professional Automatic Plastic Tank Crimping Machine , Radiator
Making Machine
1. Main Application
The plastic tank clinching machine for making radiators is used for
crimping the teeth of the
header plates and locking the plastic tank tight to the core
body to form a sealed space between the crimped plastic tank,sealing gasket and header plate.
2. Technical Features
2.1 The machinery for making radiator, i.e, plastic tank clinching
machine is a pneumatic and
servo combined power crimping machine. The long-side and short-side of the header is to be
crimped by one machine cycle. The crimping machine could crimp the teeth type header.
2.2 The operator could set the movements step by step on the touch
screen.
2.3 The radiator tank crimping machine is controlled by PLC,
and the process data could be saved.
2.4 The radiator plastic tank crimping machine has both the
automatic
and manual mode available. The touch screen could set the movement
of each step.
2.5 The crimping claw is connected with the machine by bolts. And
the machine
is to crimp different models by changing the tools.
2.6 The radiator machine is set with a protection window
surrounding the four
sides of the machine. The safety grid doesn’t affect the operation
convenience.
2.7 The radiator plastic tank crimping machine is equipped with a
3-color alarm lamp.
2.8 The radiator tank crimping machine is also equipped with a
photoelectric
switch to ensure operation safety.
3. Technical Parameters
Power supply: 3P 380V 50HZ (customized); Compressed air: 0.3～0.6Mpa 0.01m³/min Output force: 20T (reference) Radiator size: Core height: 330-800mm (header to header distance) Core width: 35-80mm; Header length: 300-800mm; Processing capacity: Output: about 250 cores/8 hour; Header deformation rate: ≤0.5mm Crimping tooling replacement time: ≤10min Overall dimension: 2200*2200*2100mm Equipment weight: about 1800kg |
4. Components List
| No. | Item | Brand |
| 1 | PLC | DELTA / Mitsubishi |
| 2 | Servo motor and servo controller | DELTA/ Mitsubishi |
| 3 | Touch screen (color) | DELTA / Mitsubishi |
| 4 | Contactor | SCHNEIDER |
| 5 | Relay | CHINT |
| 6 | Sensor | CHINT |
| 7 | Buttons and indication light | CHINT |
| 8 | Pneumatic system (cylinder, valve, filter) | AIRTAC |
| 9 | Linear rail | TBI |
| 10 | Solenoid valve | Dingli, Leqing |
| 11 | Bearing | Ha’rbin Bearing |
| 12 | Standard parts | GB standard oens |
Notes: The customer has the right to change the component brand of
equivalent level
without noticing the buyer in case of shortage of components of the
current brands.
5. Operation Procedure
The operator is responsible for placing the core body, placing the
gasket and
plastic tank, and then load the core to the working position. Press
RUN button.
Manual operation: the worker could run the machine by each step, or cancel
each step by the operation button on the panel. The manual mode is
designed for
adjustment and commissioning purpose.
Automatic operation: the worker could only start the equipment at the automatic
mode when the equipment is at the original position. When the
equipment is at
original position, the operator could change to automatic or manual
mode.
Anti-error and interlock device:there is an anti-error and
interlock control between
each two movements to avoid wrong operation and damages caused by
it.
6. Warranty
The equipment is warranted for 13 months starting from the date of
shipment.
The seller is to replace broken parts or repair the equipment free
of charge in
the warranty period, but easy-worn parts are not included in the
warranty.
7.Confidentiality
The buyer is not allowed to pass the technical documents to a third
party without
permission of the seller.
