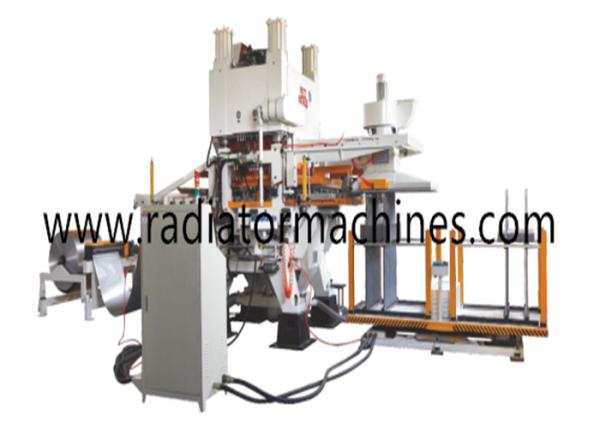

Closed Type Industrial HVAC Equipment Fin Press Line
1. Main Performance Features
1.1 The closed type fin press line is composed of aluminum foil
decoiler
mechanism, oil tank, feeding equipment(option), closed high-speed
precision
press, sucker and collector, electric control system, pneumatic
control system,
hydraulic control, quick change fin progressive die, high and
reliable technology
with Patent IP/2P/3P/4P changing system.
1.2 The slide has hydro-lifting function which will be convenient
for dies
installation and commissioning.
1.3 Power press speed and vacuum sucker is controlled by the
inverter.
1.4 Collector has protecting system for fault operation, material
shortage
warning, and oil shortage warning.
1.5 Hydraulic overload protection for fin press machine.
1.6 Equipped with hydraulic rapid die changing device making dies
replacment
more quickly and convenient.
1.7 Touch screen and PLC electrical control system ensuring the
reliable
automatic stamping
2.Technical Parameters
| ltem | Specification |
| Model | WDL-45B one point | WDL-63Bone point | WDL-63 two points front/rear |
| Capacity (KN) | 450 | 630 | 630 |
| Slide-stroke (mm) | 40 | 50 | 60 | 40 | 50 | 60 | 40 | 50 | 60 |
| Stroke per minute(without loading) SPM | 150-300 | 150-250 | 150-230 | 150-300 | 150-250 | 150-230 | 150-300 | 150-250 | 150-230 |
| Die Height (SPM) | 250-300 | 245-295 | 240-290 | 250-300 | 245-295 | 240-290 | 250-300 | 245-295 | 240-290 |
| Min Slide Lift Height mm | 2.5 80 |
| Bottom Size of Slide(LRXFB) mm | 850×580 | 850×730 | 930×730 |
| Table Size( LRXFB) mm | 1300×750 | 1300×900 | 1300×900 |
| Main Motor Power (mm) | 7.5 | 7.5 | 7.5 |
| Table Size(LRXFB) mm | 18.5 | 18.5 | 18.5 |
| Total Power KW | 6 |
| Working Air Pressure mm | 8 |
| 液压工作压力Hydraulic Working Pressure mm | φ75/φ4150 | φ150 |
| Coil D mm | 630 (could be customized) |
| Coil oD mm | Φ1000 |
| width of Material mm | ≤410 | ≤560 | ≤560 |
| Max Height of Collecting Material mm |
720mm |
| Sucker Length Kg | 1200/1500/20o0 |
| Overall Size(LxW×H) | 8500×3000×3300 |
