    NC Auto Condenser Aluminum Header Pipe Slotting Machine Dia 16 -30 Mm

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : KCJ-4
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets per Year
    Delivery Time : 90 Days
    • Product Details
    • Company Profile

    NC Auto Condenser Aluminum Header Pipe Slotting Machine Dia 16 -30 Mm


    NC Auto Condenser Aluminum Header Pipe Slotting machine Dia 16 -30 mm


    1. Purpose

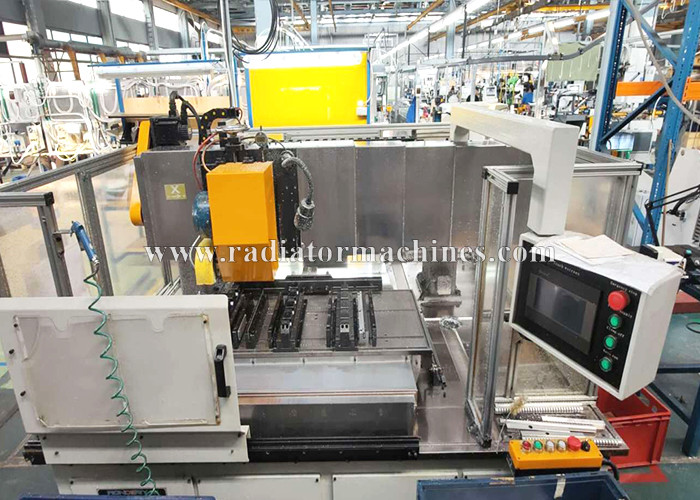

    The condenser header pipe slotting machine (4 pieces) - gantry type is a specialized equipment for making slots for

    condenser header pipes. This machine can process slots for header pipes with different diameter.

    The condenser making machine equipment structure adopts a sawing assembly installed on the gantry X-axis for

    movement, while the Y-axis adopts a platform horizontal movement, improving the cutting accuracy and reducing the

    external dimensions of the equipment. The processing parameters can be set arbitrarily on the touch screen, making

    the operation simple and convenient.

    NC Auto Condenser Aluminum Header Pipe Slotting Machine Dia 16 -30 Mm

    2. Main features:

    2.1 The condenser header pipe slotting machine uses a zipper mechanism to clamp the header pipe, which overcomes

    the impact of deformation on the clamping mechanism during the stamping process of the header pipe.

    2.2 Using fixed positioning strips for X-axis and Y-axis positioning of the header pipe, avoiding the impact of pipe

    positioning error caused in the stamping process on the position of the slot.

    2.3 The height of the saw blade can be manually adjusted, and the cutting depth can be adjusted as needed at

    any time, with accurate depth control.

    2.4 This condenser header pipe slotting machine is equipped with an infrared knife setting device. After clamping

    the header pipe, jog the horizontal work table, and the infrared irradiation position on the header pipe is the slot

    position of the saw blade.

    2.5 This condenser making machine is equipped with low-pressure protection system. The air supply pressure

    is too low, the system alarms, and the equipment stops working.

    2.6 CNC interface operation. During the system operation, the first slot is cut, then the pipe is fed to the first

    length, and then the second slot is cut, and the pipe is fed to the second length. This cycle continues until the

    slotting is completed. Avoiding the drawback of inaccurate manual feeding, improving equipment accuracy

    and fast cutting speed.


    3. Main technical parameters of the equipment

    header pipe slotting machine (4 pieces) gantry type

    (technical parameters)


    ItemUnitParameterRemarks
    Header pipe

    mm

    Mm

    The condenser header diameter is 16-30mm.

    Wall thickness of header pipe

    mm

    Mm


    1.15-2.0mm


    Dimensions and direction of header pipe slot

    Slot for external spacer (on the back of the flat tube hole)
    Spacer thicknessmmH

    Slot width size and tolerance

    mm


    H+0.05 +0.00mm



    Slot depth size and tolerance

    mm

    Mm

    D/2 +0.05 0mm

    D

    Length range of header pipe

    mm


    100mm <L<700mm



    Number of slots


    N ≤ 20


    Minimum distance between slot and flat tube end

    mm


    20mm



    Slot position tolerance

    mm+/-0.1mm

    The equipment itself only comes with a set of clamping chain for one model, and one size of cutting blade. Other specifications will be customized separately.


    Processing speed: 15 seconds/cutting (4 pipes, 1 slot) ( time is only for reference)

    Total power of equipment: 4.0KW

    Power supply voltage: AC380V

    Overall dimension (reference): 2088mm X 1600 mm X 1660 mm
